Запчасти Case 570MXT (09-55) - CANOPY, ROPS - FRAME (SHORT ROPS CANOPY WITH MINIMAL ROOF) (09) - CHASSIS/ATTACHMENTS

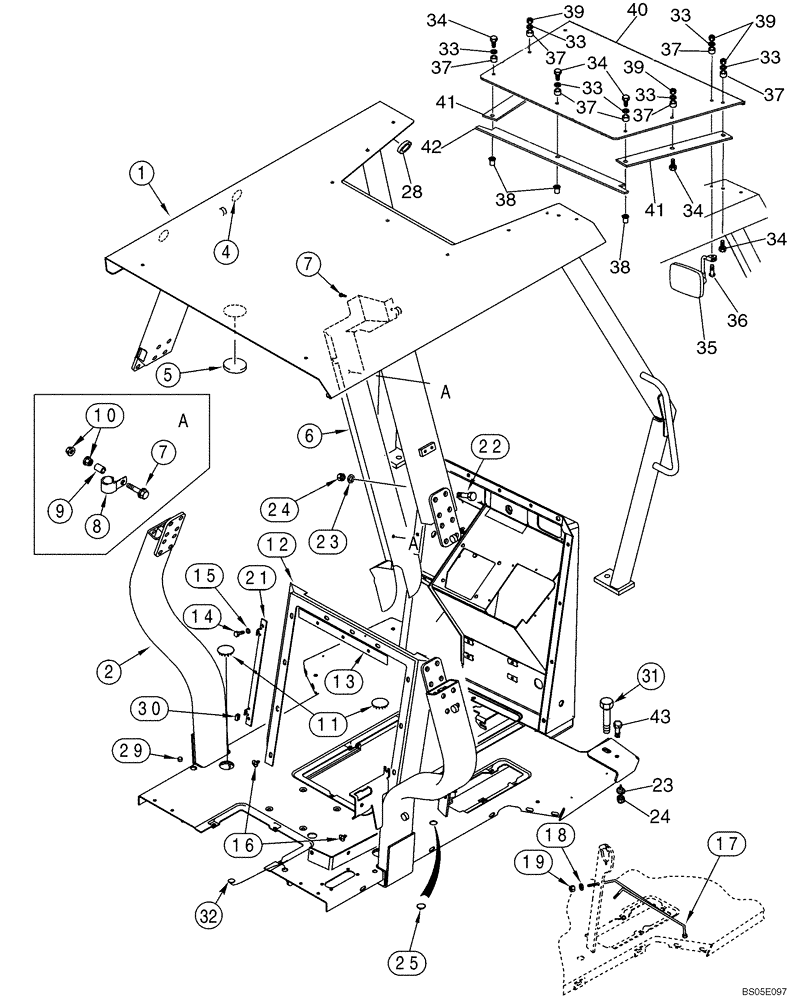

Схема запчастей Case 570MXT - (09-55) - CANOPY, ROPS - FRAME (SHORT ROPS CANOPY WITH MINIMAL ROOF) (09) - CHASSIS/ATTACHMENTS
37
19
6
33
18
38
9
12
17
34
33
34
1
24
7
4
33
37
30
11
28
36
33
33
13
7
2
37
39
37
34
16
41
35
25
31
22
5
23
23
39
37
39
10
14
9
33
40
21
37
41
32
15
34
38
43
29
24
42

Артикул

Название

Примечание

Количество

87449829

CANOPY

Assembly, ROPS; Includes 418323A4, Ref 1 and 405024A1, Ref 2 Frames, Plus Ref 22 - 24, 43 Mkounting Hardware; Replaces 87432675

1шт.

1

418323A4

ROPS

ASSEMBLY Upper; Order From Machinery Price List, For Service, Order 438453A2 Field Kit, Which Is The Complete Upper and Lower ROPS Canopy Including Non-Skid Strips, Pod Mounts, Hardware, Plugs, and 321-7030 Decal; Replaces 418323A1, 418323A2, 418323A3

1шт.

2

405024A1

ROPS

ASSEMBLY Lower; Order From Machinery Price List, For Service, Order 438453A2 Field Kit, Which Is The Complete Upper and Lower ROPS Canopy Including Non-Skid Strips, Pod Mounts, Hardware, Plugs, and 321-7030 Decal

1шт.

4

353-417

PLUG,Dome, 2.000" hole, Nylon

2шт.

5

1302758C1

PLUG

89 mm OD

3шт.

6

413057A1

COVER

Cover; Right-Hand Side

1шт.

7

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

3шт.

8

D147383

CLIP,5/8" J

2шт.

9

126907A1

SPACER,10.31 ID x 15.85 OD x 16.7 L

16,7 mm; Replaces 128265A1 (13 mm) Spacer Used On Some Models

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

11

353-417

PLUG,Dome, 2.000" hole, Nylon

Replaces 205-129 Cad Plated Steel 2 in Hole Plug Used On Some Models

2шт.

12

404692A1

MOLDING

Seal; Firewall

1шт.

13

143127A1

PLATE

Firewall Stiffener Plate

1шт.

14

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

9шт.

15

892-11008

LOCK WASHER,8mm ID

If Used

9шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

9шт.

16

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Push-in Fastener

2шт.

17

180801A1

SUPPORT

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

19

425-106

NUT,3/8"-16, Cl 5

6шт.

21

137851A1

PLATE

Console Mounting

2шт.

22

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

16шт.

23

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16-18шт.

24

829-1416

NUT,M16, Cl 10

16-18шт.

25

353-411

PLUG,Dome, 1.000" hole, Nylon

Hand Throttle Cable

1шт.

28

194262A1

GROMMET,25.4mm ID x 57.15mm OD x 12.7mm Thk

4шт.

29

353-406

PLUG,Dome, .625" hole, Nylon

If Used

1шт.

30

833-40406

NUT,M6, U

4шт.

31

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

M16 x 120, 55 mm Thread Length

2шт.

32

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

33

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

11шт.

34

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

7шт.

35

87665407

REAR VIEW MIRROR

Replaces 83995298

1шт.

36

811-6035

CARRIAGE BOLT,Short NK, M6 x 35, Cl8.8, Full Thd

1шт.

37

86982660

SPACER,12.55mm ID x 14.2mm OD x 10mm L

10 x 8

8шт.

38

86982574

THREADED INSERT

3шт.

39

832-10406

NUT,M6 x 1, Cl 8

5шт.

40

86982447

COVER

ROPS Opening

1шт.

41

86982494

SEAL

Sides

2шт.

42

86982493

SEAL

Rear

1шт.

43

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 41
