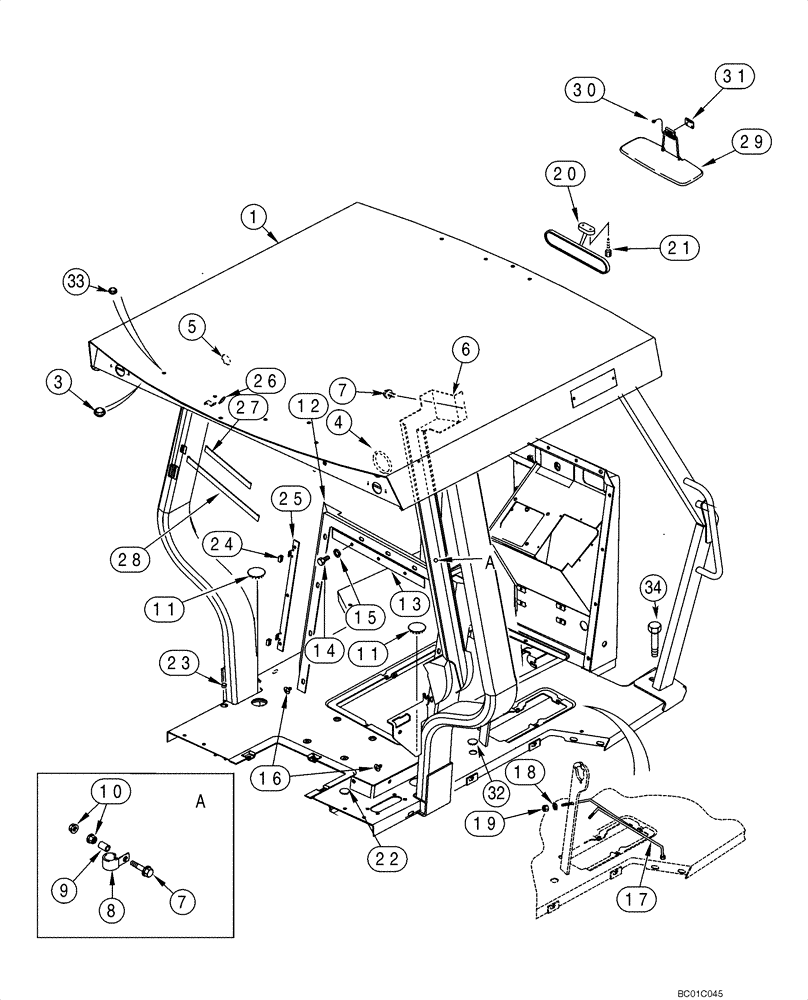

Запчасти Case 570MXT (09-54) - CANOPY, ROPS - FRAME, COVERS, MIRROR, VISOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
405023A3
ROPS
Order From Machinery Price List; For Service, Order 407873A2, Which Is The Complete ROPS Canopy With Decals and Mounts; Replaces 405023A2
1шт.
3
353-405
PLUG,Dome, .562" hole, Nylon
4-10шт.
4
1302758C1
PLUG
89 mm OD
4шт.
5
353-417
PLUG,Dome, 2.000" hole, Nylon
Black
8шт.
6
390688A1
COVER
Cover; Right-Hand Side
1шт.
7
282-16512
SCREW,Hex Wshr Hd, #10 - 16 x 3/4"
3шт.
8
D147383
CLIP,5/8" J
2шт.
9
126907A1
SPACER,10.31 ID x 15.85 OD x 16.7 L
16.7 mm; Replaces 128265A1 (13 mm) Spacer Used On Some Models
2шт.
10
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
4шт.
11
353-417
PLUG,Dome, 2.000" hole, Nylon
Black; Replaces 205-129 Cad Plated Steel 2 in Hole Plug Used On Some Models
2шт.
12
404692A1
MOLDING
Seal
1шт.
13
143127A1
PLATE
1шт.
14
781-24820
SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm
9шт.
15
892-11008
LOCK WASHER,8mm ID
If Used
9шт.
15
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
If Used
9шт.
16
D143242
PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L
2шт.
17
180801A1
SUPPORT
Loader Control
1шт.
18
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
6шт.
19
425-106
NUT,3/8"-16, Cl 5
6шт.
20
87406923
REAR VIEW MIRROR
Interior; Replaces 194513A1 Mirror
1шт.
21
286-56520
SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"
2шт.
22
353-408
PLUG,Dome, .750" hole, Nylon
1шт.
23
353-406
PLUG,Dome, .625" hole, Nylon
If Used
1шт.
24
833-40406
NUT,M6, U
4шт.
25
137851A1
PLATE
2шт.
26
294666A1
COVER
Hook
1шт.
27
296367A1
STRAP
Velcro
1шт.
28
282845A1
STRAP
Velcro
1шт.
29
E47027
VISOR, SUN
1шт.
30
260-14516
SELF-TAP SCREW,Cross Pan Hd, #10 x 1"
3шт.
31
307243A1
SHIM,60mm W x 45mm L x 3mm Thk
1шт.
32
353-411
PLUG,Dome, 1.000" hole, Nylon
Hand Throttle Cable
1шт.
33
353-402
PLUG,Dome, .375" hole, Nylon
If used
4шт.
33
353-405
PLUG,Dome, .562" hole, Nylon
If Used
9шт.
34
84036080
BOLT,Hex, M16 x 110mm, Cl 10.9
2шт.
Выбрано товаров: 35
