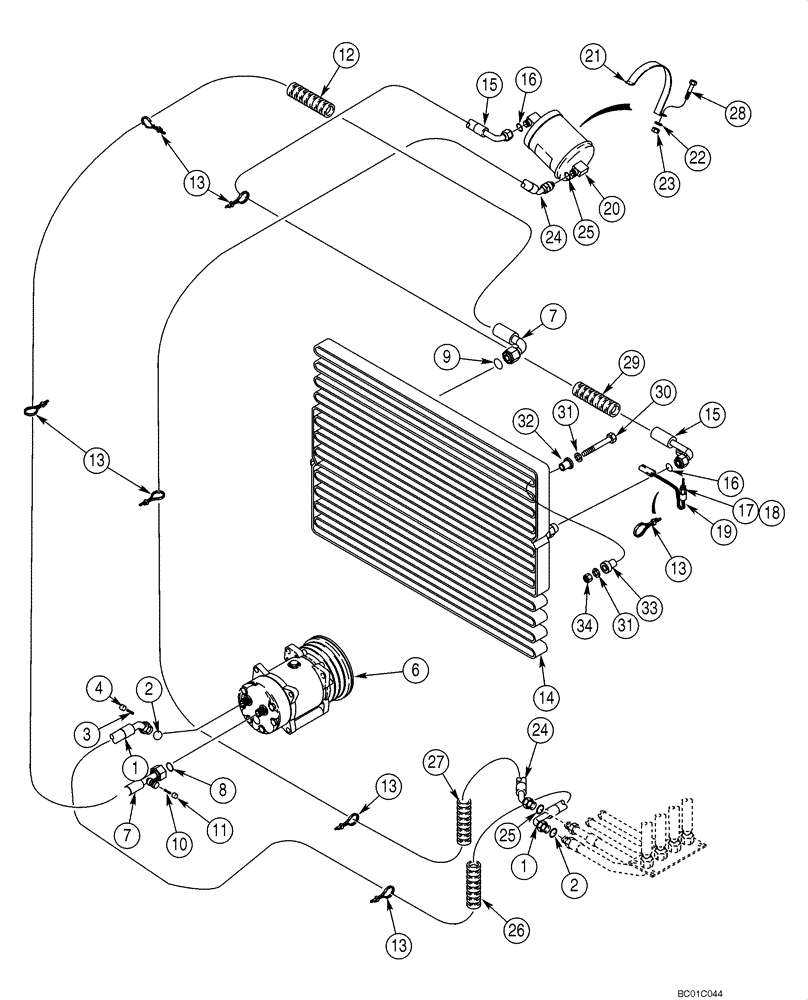

Запчасти Case 570MXT (09-52) - CAB - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS

1

305822A1

HOSE

Compressor To Cab Base; Incl. 2 - 4

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

3

1250594C1

CORE

Low Side Service Port

1шт.

4

122553A1

CAP

1шт.

6

1999755C3

COMPRESSOR

1шт.

6

86993462R

REMAN-COMPRESSOR

570MXT; Reman For New P/N 1999755C3

1шт.

6

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

6

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

6

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

6

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley,For Use w/ HFC134A Refrigerant

1шт.

6

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

7

383563A1

A/C HOSE

Compressor To Condenser; Incl. 8 - 11

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

9

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

10

1250594C1

CORE

High Side Charge Port

1шт.

11

122554A1

CAP

1шт.

12

193913A1

PROTECTOR

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

14

370515A1

CONDENSER

1шт.

15

383562A1

A/C HOSE

650 mm (25-19/32 in); Condenser To Receiver-Drier; Incl. 16 - 18

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

17

1250594C1

CORE

High Pressure Switch

1шт.

18

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

19

232948A1

SWITCH, A/C HIGH PRE

1шт.

20

1990758C2

RECEIVER-DRYER

1шт.

21

253404A1

HALF-COLLAR

HALF COLLAR

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

24

430476A1

HOSE ASSY.

Receiver-Drier To Cab Base; Incl. 25; Replaces 305821A1

1шт.

25

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

26

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

400 mm (15-3/4 in)

2шт.

27

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

460 mm (18-1/8 in)

2шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

29

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

460 mm (18-1/8 in)

1шт.

30

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

32

383497A1

SLEEVE,11.1mm ID x 13mm OD x 18.5mm L

8.6 x 13 x 18.5

4шт.

33

382989A1

GROMMET

8.6 x 13 x 23.5

4шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.
