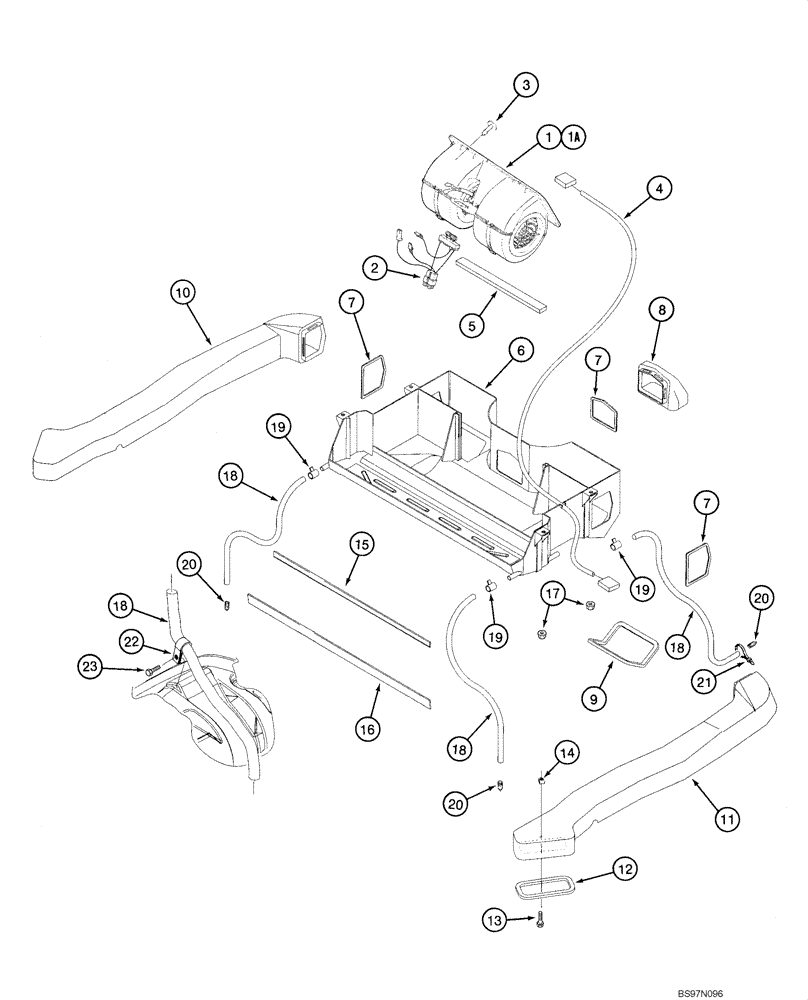

Запчасти Case 570MXT (09-49) - CAB - BLOWER HOUSING, VENTILATION DUCTS, DRAIN LINES (09) - CHASSIS/ATTACHMENTS

1

355189A1

BLOWER,12V - 3 Spd

Component Parts Not Serviced Separately; Used In Production, For Service, Order 355190A1, 1343938C2

1шт.

1

355190A1R

REMAN-BLOWER,12V

Reman for New PN 355189A1

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

1a

355190A1

BLOWER,12V

Component Parts Not Serviced Separately

1шт.

1a

355190A1R

REMAN-BLOWER,12V

Electronics - Other

1шт.

1a

355190A1C

CORE-BLOWER,12V

Return Number, BLOWER

1шт.

2

1343938C2

RESISTOR

1шт.

3

182697A1

FASTENER

5шт.

4

189404A1

HARNESS

Jumper

1шт.

5

181981A1

SEALING STRIP

6 x 20 x 355 mm

1шт.

6

134125A1

CASE

Heat and Air

1шт.

7

128406A1

SEAL

3шт.

8

131039A1

CONDUIT

1шт.

9

131974A1

SEAL

2шт.

10

131041A1

CONDUIT

Left-Hand

1шт.

11

131042A1

CONDUIT

Right-Hand

1шт.

12

131973A1

SEAL

2шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

14

833-40406

NUT,M6, U

2шт.

15

1987097C1

PANEL

Air Conditioning Drain Pan

1шт.

16

1987096C1

PLATE

Air Conditioning Drain Pan

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

18

127073A1

CONDUIT

Drain

4шт.

19

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

20

109239C2

CHECK VALVE

Drain

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

22

184289A1

CLAMP,16mm D Clamping Pipe

1шт.

23

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.
