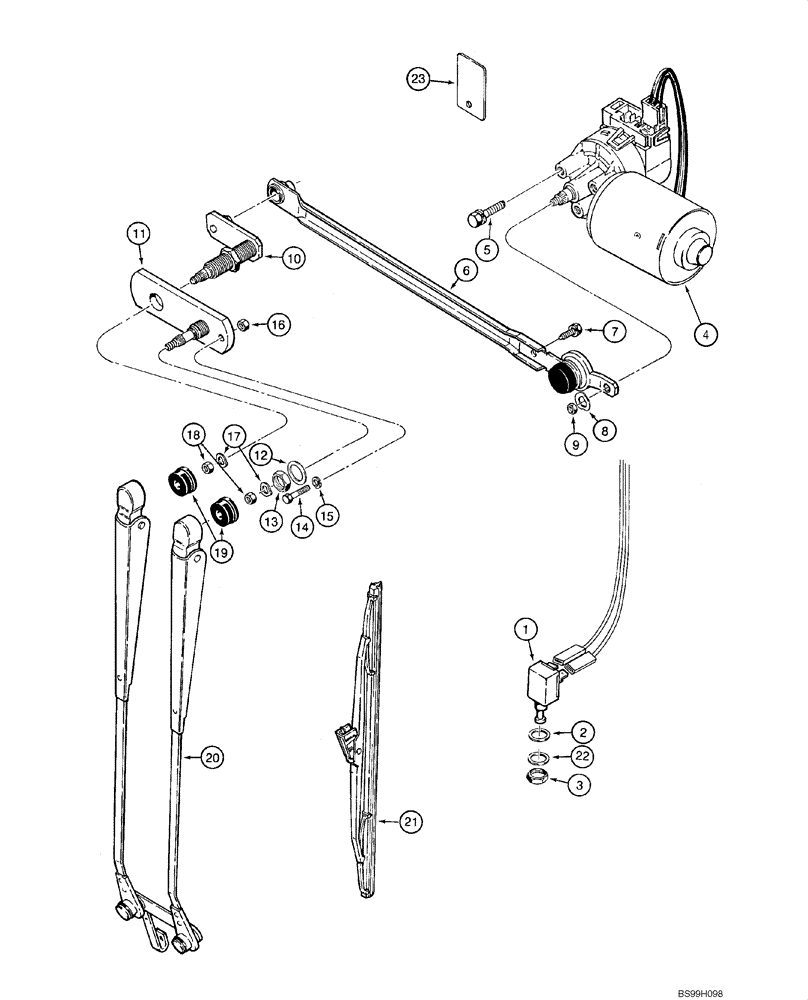

Запчасти Case 570MXT (09-46) - CAB - WIPER, REAR (09) - CHASSIS/ATTACHMENTS

1

A187714

PUSH BUTTON SWITCH

SWITCH - wiper stop

1шт.

2

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

1шт.

3

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

4

184118A1

WIPER MOTOR

MOTOR, WIPER 12V

1шт.

5

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

D128018

LINK

Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Link

1шт.

7

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

1шт.

8

N8361

SPRING WASHER

1шт.

9

L112090

NUT

8 mm

1шт.

10

D128020

SHAFT

Incl Nut

1шт.

11

D128021

SHAFT

1шт.

12

L112088

WASHER

1шт.

13

L112087

NUT

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

15

492-11025

LOCK WASHER,1/4"

1шт.

16

425-104

NUT,1/4"-20, Cl 5

1шт.

17

L112089

WASHER

2шт.

18

L112090

NUT

8 mm

2шт.

19

L112081

CAP

2шт.

20

R52408

WIPER ARM

ARM, WIPER

1шт.

21

D128022

WIPER BLADE

BLADE, WIPER

1шт.

22

495-21044

WASHER,3/8"

1шт.

23

193707A1

LARGE PLATE

PLATE, LARGE

1шт.
