Запчасти Case 570MXT (09-44) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

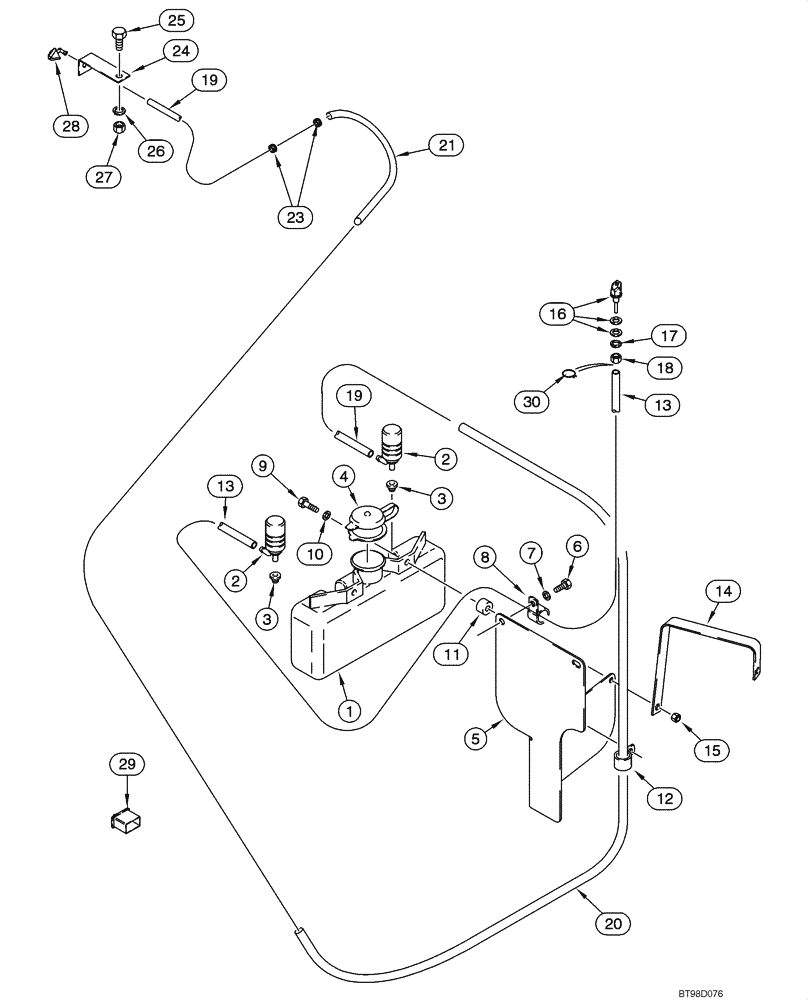

Схема запчастей Case 570MXT - (09-44) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS
27
25
21
6
19
3
13
1
3
30
2
17
14
11
23
9
18
20
28
19
10
16
4
15
8
26
13
7
2
5
24
12
29

Артикул

Название

Примечание

Количество

E46560

RESERVOIR

Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Reservoir

1шт.

2

E47238

PUMP,12V

Pump

2шт.

3

E47239

SEAL,6.5mm ID x 12mm OD x 10mm L

Pump

2шт.

4

E47240

PLUG

1шт.

5

367073A1

BRACKET

1шт.

6

806-8040

BOLT,Hex, M8 x 40mm, Cl 10.9

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

9

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

11

E46561

SPACER

2шт.

12

D147383

CLIP,5/8" J

1шт.

13

292408A1

HOSE

Front Washer

1шт.

14

367956A1

STRIP

Models Without Turbocharged Engine

1шт.

14

367957A1

STRIP

Models With Turbocharged Engine

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

284154A1

NOZZLE,3/8" - 16

Front; Incl. Steel and Rubber Washer Which Are Not Serviced Separately; Brass; If Used

1шт.

16

E43769

SPRAY

NOZZLE; Front; Includes Rubber Gasket; Plastic; If Used

1шт.

17

492-11038

LOCK WASHER,3/8"

If Used

1шт.

18

25-106

NUT,3/8"-16, G5

If Used

1шт.

19

226584A1

HOSE,4mm ID x 5020mm L

5020 mm (197-11/16 in); Rear Washer

1шт.

20

226582A1

HOSE PROTECTION

1шт.

21

226580A1

PROTECTOR

1шт.

23

E46524

GROMMET

2шт.

24

305818A1

SUPPORT

1шт.

25

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

26

892-11010

LOCK WASHER,M10

1шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

28

E43769

SPRAY

Rear; Incl. Rubber Seal Which Is Not Serviced Separately

1шт.

29

144900A1

WINDSHIELD WASHER SW

Windshield Washer; Front And Rear; Mounts In Cab Control Panel

1шт.

30

87444176

HOSE CLIP

1шт.

Выбрано товаров: 32
