Запчасти Case 570MXT (09-43) - CAB - PANEL, CONTROL (09) - CHASSIS/ATTACHMENTS

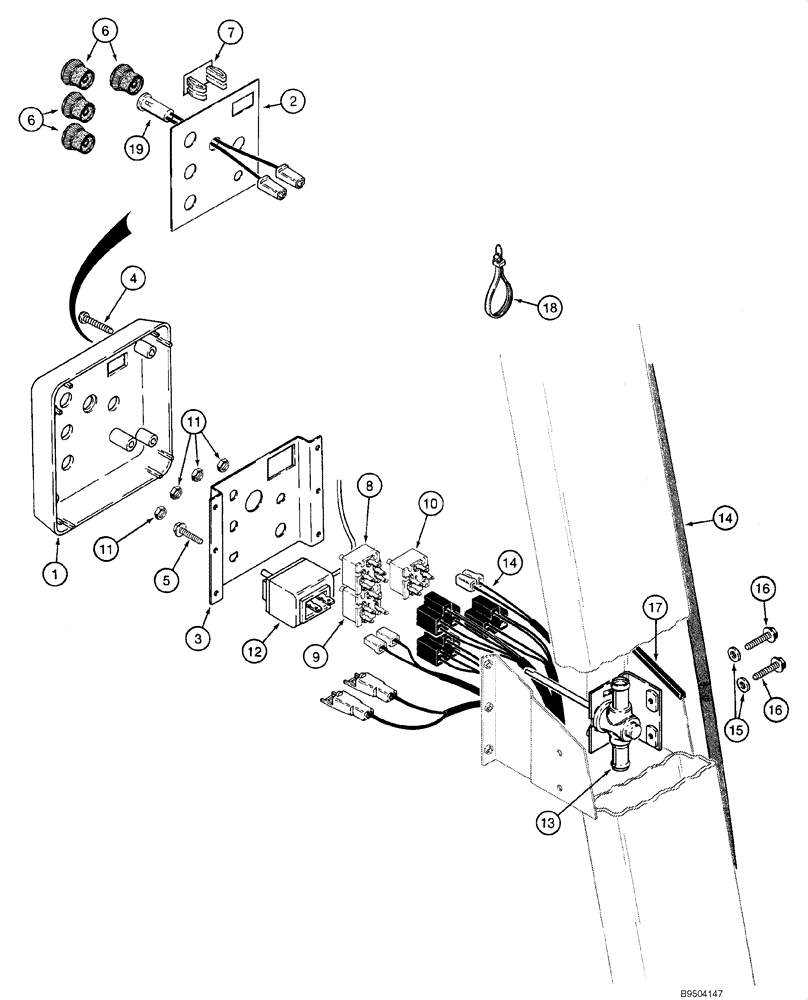

Схема запчастей Case 570MXT - (09-43) - CAB - PANEL, CONTROL (09) - CHASSIS/ATTACHMENTS
11
16
18
9
7
17
14
3
12
11
2
6
13
19
5
1
16
6
8
10
14
15
4

Артикул

Название

Примечание

Количество

1

390696A1

CONSOLE

Incl. 2

1шт.

2

135183A1

DECAL

Instrument Symbols; Wipers; Environmental Control; For Decal, See Figure 09-60

1шт.

3

136036A1

SUPPORT

1шт.

4

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

4шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

2шт.

6

111282C1

KNOB

Front and Rear Wiper; Heater, Blower; Air Conditioner

4-5шт.

7

86000535

PLUG,1.427" x .62", Plastic

Accessory

1шт.

7

144900A1

WINDSHIELD WASHER SW

Windshield Washer; If Used; Not Illustrated

1шт.

8

245258A1

ROTARY SWITCH

Blower

1шт.

9

R52440

SWITCH

Rear Wiper

1шт.

245706C1

ELEC CONNECTOR

Plastic; Rear Wiper; Blower; Windshield Wiper; If Used; Not Illustrated

3шт.

10

R52415

ROTARY SWITCH

Front Wiper

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

4шт.

12

1340287C1

SWITCH

Temperature Control; Air Conditioning

1шт.

13

R52483

VALVE

Temperature Control; Heater

1шт.

14

REF

INSTRUCTION

Harness, Cab

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

D36179

LINING

108 mm (4-1/4 in); Cut From F42827

1шт.

18

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

19

1964672C1

LIGHT

14V; Indicator; Amber; Air Conditioning

1шт.

Выбрано товаров: 21
