Запчасти Case 570MXT (09-42) - CAB - WINDOW, REAR (09) - CHASSIS/ATTACHMENTS

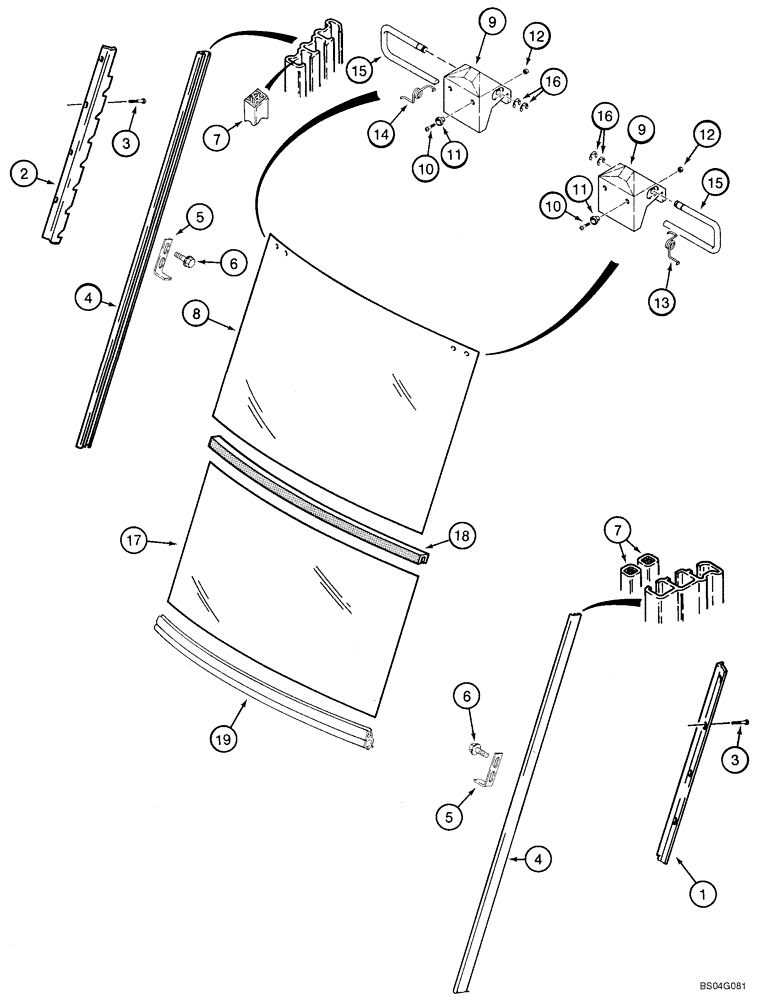

Схема запчастей Case 570MXT - (09-42) - CAB - WINDOW, REAR (09) - CHASSIS/ATTACHMENTS
19
9
7
16
5
15
12
15
1
10
10
12
11
6
8
4
6
9
5
13
17
4
4
16
7
3
3
2
1
18

Артикул

Название

Примечание

Количество

1

177252A1

SUPPORT

Right-Hand; Upper

1шт.

2

177251A1

SUPPORT

Left-Hand; Upper

1шт.

3

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

8шт.

4

177994A3

GUIDE

Replaces 177994A2

2шт.

5

177833A1

SUPPORT

2шт.

6

280-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

7

178130A1

SEAL

4шт.

8

D129967

GLASS

North American Models

1шт.

8a

E49810

GLASS

European Models; Not Illustrated

1шт.

9

97278C1

LATCH

2шт.

10

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

4шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon

4шт.

12

230-42409

NUT,#10-24, GA

4шт.

13

1990727C1

SPRING

Right-Hand

1шт.

14

1990728C1

SPRING

Left-Hand

1шт.

15

1344232C1

LEVER

2шт.

16

100-3337

SNAP RING,E-Type, 0.3" OD

4шт.

17

175092A1

GLASS

North American Models

1шт.

17a

225599A1

GLASS

European Models; Not Illustrated

1шт.

18

436976A1

ORNAMENTAL STRIP

North American Models

1шт.

18a

E48388

SEAL

European Models; Not Illustrated

1шт.

19

137315A1

SEAL,899.6mm L

900 mm (35-7/16 in)

1шт.

Выбрано товаров: 22
