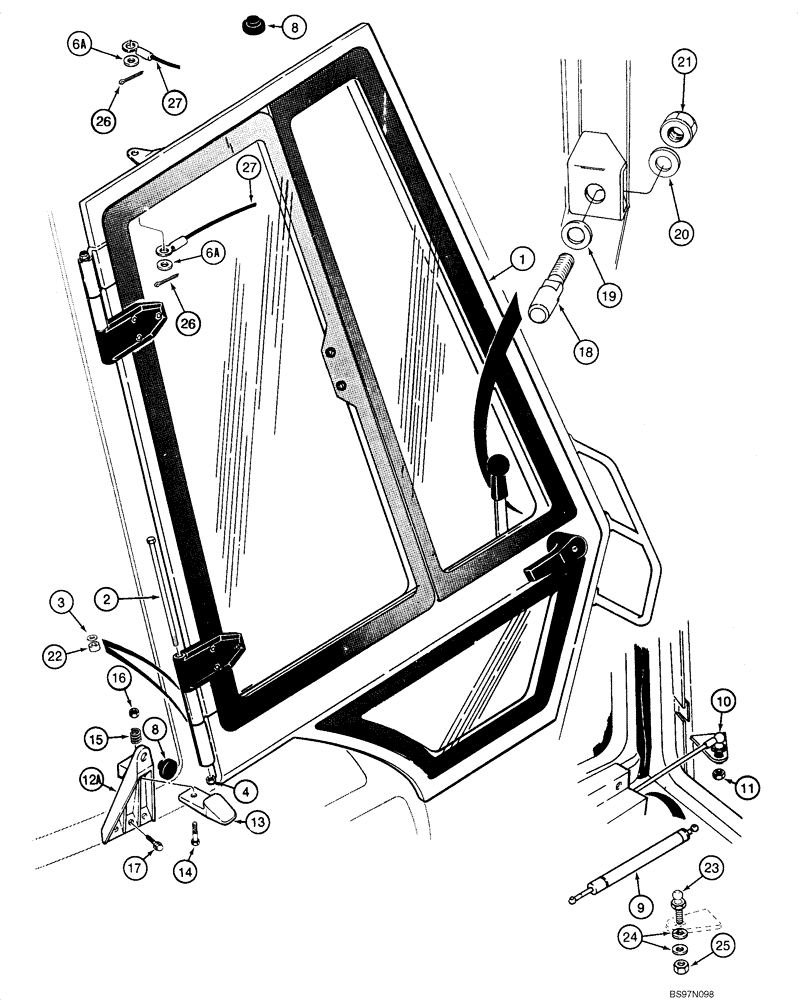

Запчасти Case 570MXT (09-41) - CAB - DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Door; See Figure 09-39, 09-40

1шт.

2

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

4шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

4шт.

6a

495-21038

WASHER,5/16"

4шт.

8

L60224

BUMPER

4шт.

9

F44881

CYLINDER ASSY.

2шт.

10

1340345C1

BALL STUD

BALL PIN Right-Hand Door

1шт.

11

230-4215

NUT,5/16"-18, GA

2шт.

12

230590A1

SUPPORT

Left-Hand; Hold Open; Not Illustrated

1шт.

12a

230589A1

SUPPORT

Right-Hand; Hold Open

1шт.

13

230588A1

LATCH

2шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

15

D36669

SPRING

2шт.

16

230-4214

LOCK NUT,1/4"-20, GA

2шт.

17

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

6шт.

18

R52735

LATCH

Striker

2шт.

19

F44748

SPRING WASHER

2шт.

20

495-81148

WASHER,7/16" x 1 1/4" x .134"

2шт.

21

230-4217

LOCK NUT,7/16"-14, GA

2шт.

22

107949A1

BUSHING

8шт.

23

139362A1

BALL JOINT

LH Door

1шт.

24

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

136-155

COTTER PIN,Int, 7/64" x .051"

4шт.

27

225059A1

CABLE,280mm L

2шт.
