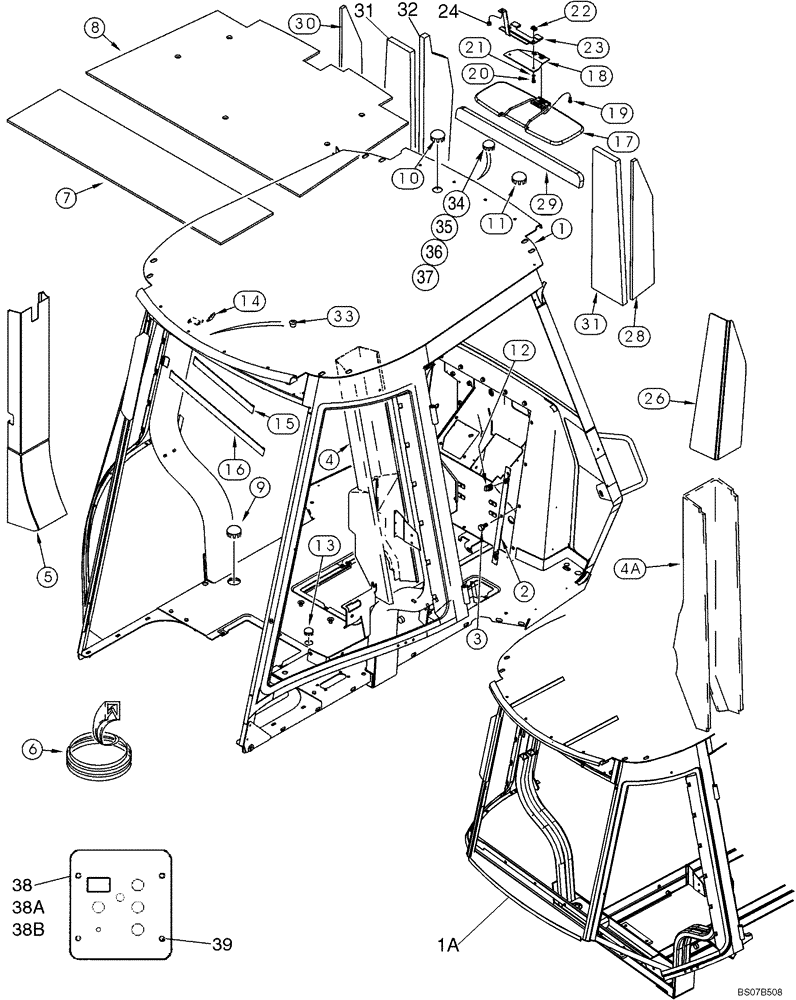

Запчасти Case 570MXT (09-38) - CAB - FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS

1

405022A4

CAB FRAME

405027A4, 405028A4 Cab; Not Serviced Separately; Replaces 405022A2, 405022A3

1шт.

1a

87609176

CAB FRAME

Frame; 87566949, 87557495 Cab; Not Serviced Separately

1шт.

2

137851A1

PLATE

2шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

4

405420A1

COVER

Plastic; Right-Hand Post; Standard Interior

1шт.

4a

390692A1

PANEL

Vinyl; Right-Hand Post; Deluxe Interior

1шт.

5

390719A1

PANEL

Vinyl; Left-Hand Post; Deluxe Interior

1шт.

6

108963A1

LINING

Right-Hand Post

2шт.

7

108797A1

PANEL

200 x 813 x 6.4 mm; Insulation; Cut From 108794A2

1шт.

8

127021A2

PANEL

Insulation

1шт.

9

353-417

PLUG,Dome, 2.000" hole, Nylon

Replaces 205-129 Cad Plated Steel 2 in Hole Plug Used On Some Models

2шт.

10

353-415

PLUG,Dome, 1.500" hole, Nylon

Cab Roof; Models Without Radio Antenna

1шт.

11

353-410

PLUG,Dome, .875" hole, Nylon

Upper Windshield Frame; Models without Radio Antenna

1шт.

12

833-40406

NUT,M6, U

4шт.

13

205-33

HOLE PLUG BUTTON,25/32"

If Used

1шт.

14

294666A1

COVER

Hook

1шт.

15

296367A1

STRAP

Velcro

1шт.

16

282845A1

STRAP

Velcro

1шт.

17

E47027

VISOR, SUN

1шт.

18

426133A1

BRACKET

1шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

20

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

21

892-11006

LOCK WASHER,M6

2шт.

22

833-40406

NUT,M6, U

2шт.

23

227178A2

SUPPORT

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

26

404182A1

COVER

Right-Hand; Lower Front; Deluxe Interior

1шт.

27

404181A1

COVER

Left-Hand; Lower Front; Deluxe Interior; Not Illustrated

1шт.

28

303106A1

PANEL

Insulation; Right-Hand; Firewall; If Used

1шт.

29

297913A1

PANEL

Insulation; Front; Firewall

1шт.

30

303108A1

PANEL

Insulation; Left-Hand; Firewall

1шт.

31

303105A1

PANEL

Insulation; Firewall; If Used

2шт.

32

303109A1

PANEL

Insulation; Left-Hand; Firewall

1шт.

33

353-407

PLUG,Dome, .687" hole, Nylon

Rear Filter Plate; Models without Windshield Washer

1шт.

34

353-425

PLUG,0.437 Hole OD

7/16 in dia; Upper Windshield Frame

1шт.

35

353-421

PLUG,Dome, .187" hole, Nylon

Upper Windshield Frame

1шт.

36

353-405

PLUG,Dome, .562" hole, Nylon

Upper Windshield Frame

1шт.

37

353-402

PLUG,Dome, .375" hole, Nylon

Optional lamp holes; If used

4шт.

38

390696A1

CONSOLE

Incl. 38A, 38B

1шт.

38a

390695A1

PANEL

1шт.

38b

135183A1

DECAL

Control Panel

1шт.

39

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

4шт.
