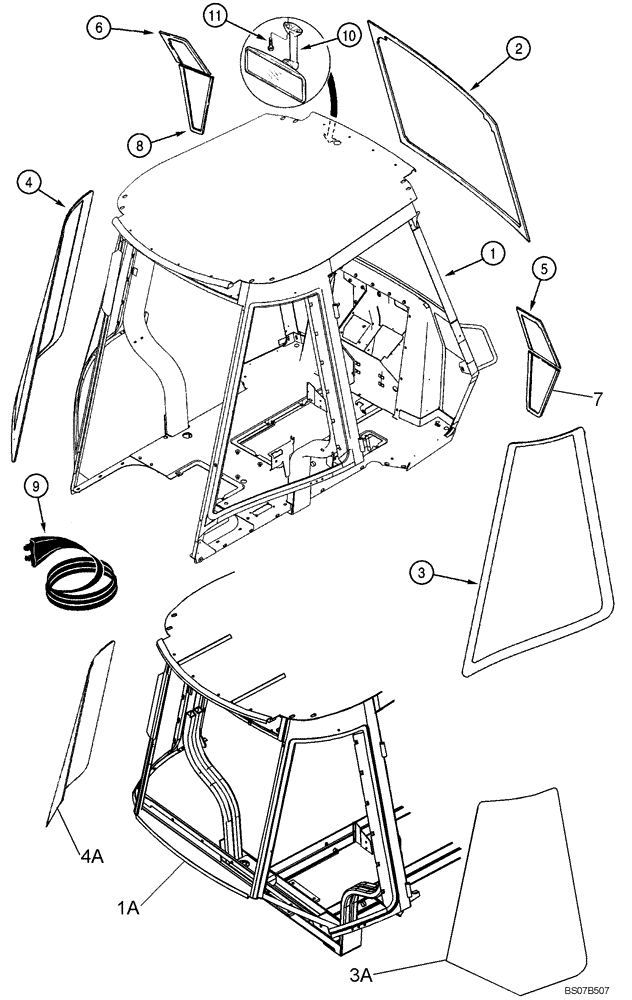

Запчасти Case 570MXT (09-37) - CAB - GLASS AND MIRROR (09) - CHASSIS/ATTACHMENTS

1

405027A4

CAB

Complete W/Heat; Order From Machinery Price List; Replaces 405027A1, 405027A2, 405027A3; Used W/399303A1, 87326904 Chassis and Fenders on Figure 09-29

1шт.

REF

INSTRUCTION

405027A4 Cab Assy W/Heat Is No Longer Available; For Service Order 87566949 Cab Assy W/Heat, Plus 87615578 Fender Service Kit, Which Includes Cab Fenders & 3 Pt Hitch Enclosure Cover on Figures 09-29A, 09-30A

1шт.

1

405028A4

CAB

Complete W/Heat and Air Conditioning; Order From Machinery Price List; Replaces 405028A1, 405028A2, 405028A3; Used W/399303A1, 87326904 Chassis and Fenders on Figure 09-29

1шт.

REF

INSTRUCTION

405028A4 Cab Assy W/Heat & A/C Is No Longer Available; For Service Order 87557495 Cab Assy W/Heat & A/C, Plus 87615578 Fender Service Kit, Which Includes Cab Fenders & 3 Pt Hitch Enclosure Cover on Figures 09-29A, 09-30A

1шт.

1a

87566949

CAB

Complete W/Heat; Order From Machinery Price List; Used W/87342963 Chassis and Fenders on Figure 09-29A, 3 Pt Hitch W/Straight Draft Arms

1шт.

1a

87557495

CAB

Complete W/Heat and Air Conditioning; Order From Machinery Price List; Used W/87342963 Chassis and Fenders on Figure 09-29A, 3 Pt Hitch W/Straight Draft Arms

1шт.

2

97290C1

GLASS

1шт.

3

D126204

GLASS

Right Rear Quarter Panel; Ref 1 Cab

1шт.

3a

87546576

CAB GLASS

Right Rear Quarter Panel; Ref 1A Cab

1шт.

4

D126205

GLASS

Left Rear Quarter Panel; Ref 1 Cab

1шт.

4a

87546577

CAB GLASS

Left Rear Quarter Panel; Ref 1A Cab

1шт.

5

107230A1

GLASS

Right-Hand

1шт.

6

107233A1

GLASS

Left-Hand

1шт.

7

107232A1

GLASS

1шт.

8

107234A1

GLASS

1шт.

9

108513A1

SEAL, GLASS,290mm L

290 mm (11-7/16 in); Front Knee Glass

2шт.

10

143369A2

MIRROR ASSY.

Interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

2шт.
