Запчасти Case 570MXT (09-35) - SEAT ASSY, MECHANICAL SUSPENSION (MILSCO) (09) - CHASSIS/ATTACHMENTS

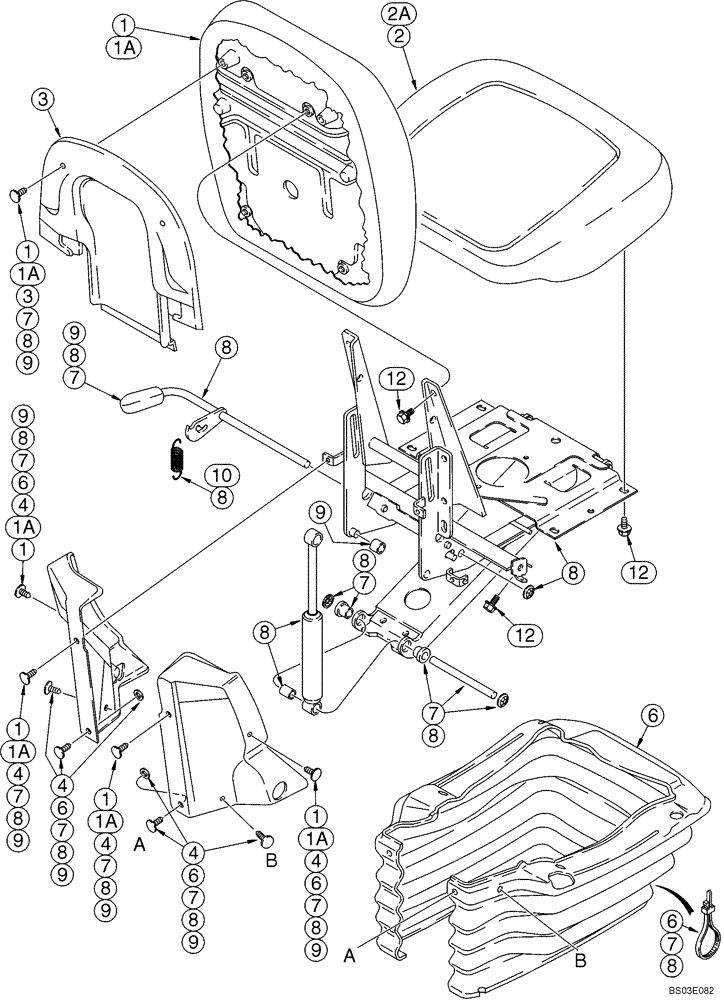

Схема запчастей Case 570MXT - (09-35) - SEAT ASSY, MECHANICAL SUSPENSION (MILSCO) (09) - CHASSIS/ATTACHMENTS
8
9
12
7
1
7
7
4
6
6
1
9
4
8
10
6
1
3
7
1
9
1a
3
7
7
7
1a
4
8
6
8
4
4
7
12
8
9
12
8
2
8
8
7
7
8
9
2a
1
8
9
9
1a
1
1a
8
9
4
1a
8
8
1a
9
6
8
8
7
6

Артикул

Название

Примечание

Количество

413014A1

SEAT ASSY.

Cloth, Mechanical Suspension; Includes Seat, Suspension, Pedestal and Weight Adjuster; Incl. Ref 1 - 10; Also Includes Parts On Figure 09-36; Without Armrests

1шт.

413013A1

SEAT ASSY.

Vinyl, Mechanical Suspension; Includes Seat, Suspension, Pedestal and Weight Adjuster; Incl. Ref 1 - 10; Also Includes Parts On Figure 09-36; Without Armrests

1шт.

1

399757A1

KIT

Backrest Cushion, Cloth, Includes Lumbar Knob, (6) Clips and (4) Screws

1шт.

1a

399759A1

KIT

Backrest Cushion, Vinyl, Includes Lumbar Knob, (6) Clips and (4) Screws

1шт.

2

399758A1

KIT

Seat Cushion, Cloth, Includes (6) Screws

1шт.

2a

399760A1

KIT

Seat Cushion, Vinyl, Includes (6) Screws

1шт.

3

307091A1

ASSEMBLY

Backrest Shroud Kit, Includes (2) Clips

1шт.

4

307099A1

KIT

Side Shroud, Left-Hand and Right-Hand, Includes (6) Clips, (2) Washers, (1) Height Adjustment Grip and (1) Back Angle Grip

1шт.

6

307098A1

KIT

Boot, Includes (2) Ties, (2) Washers and (4) Clips

1шт.

7

176919A1

KIT

Swing Arm Pivot Shaft, Includes (2) Flanged Bearings, (4) Push Nuts, (2) Clips, (2) Washers, (1) Grip and (2) Ties

1шт.

8

307093A1

KIT

Suspension, Includes Suspension, Back Angle Adjust, (1) Handle, (8) Screws, (2) Springs, (3) Washers, (1) Rivet

1шт.

8

307093A1

KIT

307092A1 Suspension Kit Also Includes (1) Spacer, (2) Ties, (8) Clips, (12) Nuts, (1) Height Adjust Grip, (1) Back Angle Grip, (1) Rake Grip, (1) Fore/Aft/Swivel Grip, (1) Decal

1шт.

9

176921A1

KIT

Plastic Components, Includes (2) Rollers, (4) Downstops, (2) Roller Guides, (2) Bearings, (1) Bumper, (4) Nuts, (10) Clips, (2) Washers and (1) Grip, For Additional Kit Parts, See Figure(s) 9-36, Ref 2

1шт.

10

116547A1

KIT

Height Adjusting Spring, Includes (10) Shroud Retainers, (2) Washers, (2) Springs and (1) Wear Strip, For Additional Kit Parts, See Figure(s) 9-36, Ref 6

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt, 5/16 Inch Thread, Length As Required, Purchase Locally, Seat Cushion and Backrest

8шт.

Выбрано товаров: 15
