Запчасти Case 570MXT (09-34) - SEAT SUPPORT AND PEDESTAL, STANDARD (MILSCO) (09) - CHASSIS/ATTACHMENTS

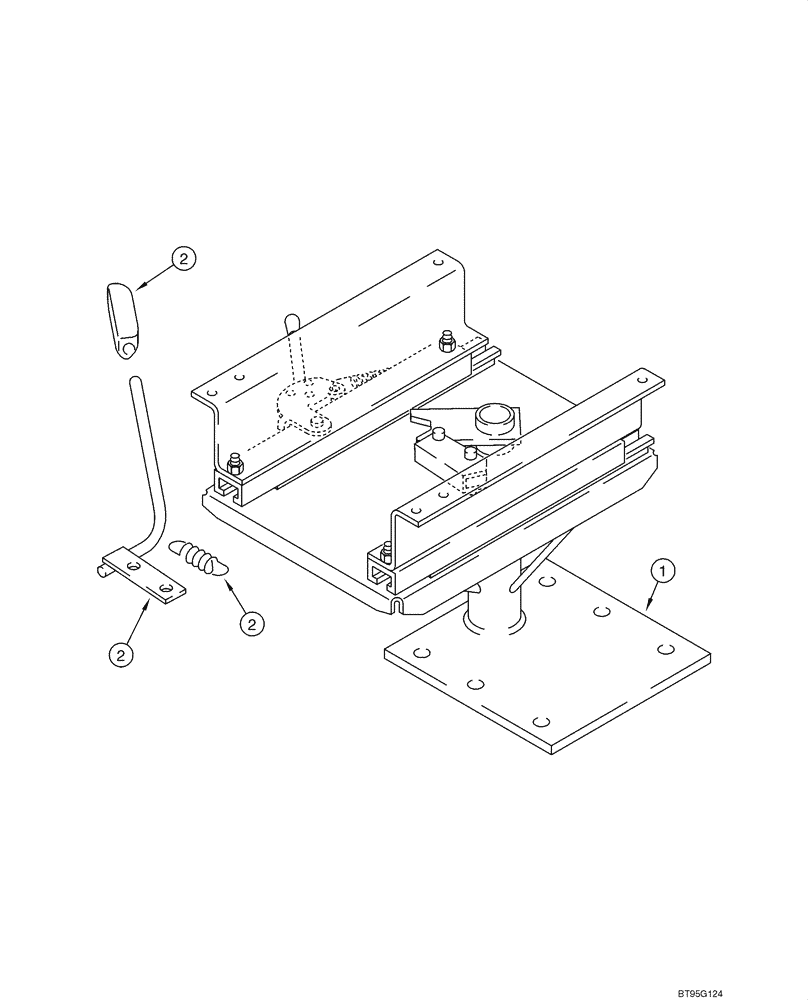

Схема запчастей Case 570MXT - (09-34) - SEAT SUPPORT AND PEDESTAL, STANDARD (MILSCO) (09) - CHASSIS/ATTACHMENTS
2
1
2
2

Артикул

Название

Примечание

Количество

414945A1

SEAT ASSY.

Standard, Vinyl, Incl. Ref 1, 2; Also Includes Parts On Figure 09-33

1шт.

1

192308A1

KIT

Pedestal, Includes Pedestal, Swivel Handle Grip, Hardware And Instruction Sheet

1шт.

2

192310A1

KIT

Swivel Latch, Includes Handle, Grip, Spring and Retaining Rings

1шт.

Выбрано товаров: 3
