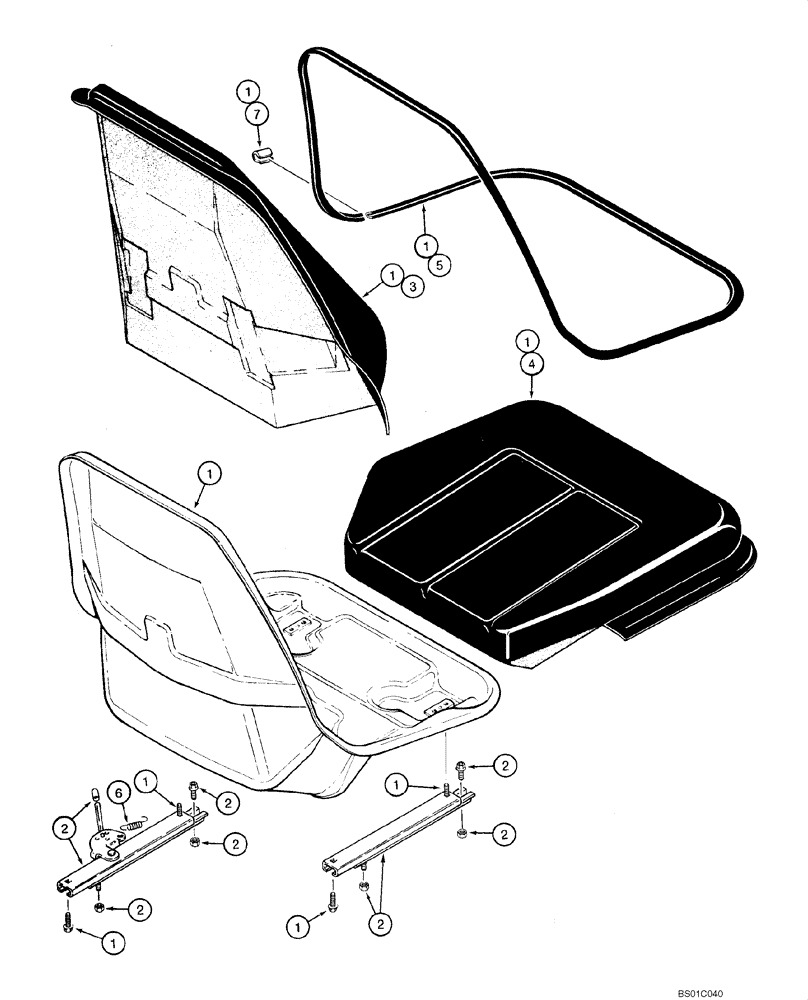

Запчасти Case 570MXT (09-33) - SEAT ASSY, STANDARD (MILSCO) (09) - CHASSIS/ATTACHMENTS

414945A1

SEAT ASSY.

Standard, Vinyl, Incl. Ref 1 - 6; Also Includes Parts On Figure 09-34

1шт.

1

426302A1

KIT

Includes Seat Shell With Seat and Backrest Cushions, Trim and Clips, Incl. Ref 3 - 5, Component Parts Not Serviced Separately

1шт.

2

192309A1

KIT

Seat Slide Adjusters, Includes Two Slides, (8) Nuts, Grip and (4) Screws

1шт.

3

NSS

NOT SOLD SEPARAT

Backrest

1шт.

4

NSS

NOT SOLD SEPARAT

Cushion, Seat

1шт.

5

176924A1

SET OF PARTS

Trim

1шт.

6

119171A1

KIT

Spring, Includes (3) Springs

1шт.

7

NSS

NOT SOLD SEPARAT

Clip, Order N7802 Clip Kit

1шт.

N7802

CLIP

KIT, Incl. Ref 7 Clip, Plus 6 Additional Narrow Clips

1шт.
