Запчасти Case 570MXT (09-32B) - SEAT - MOUNTING (SEARS MECHANICAL SUSPENSION) (09) - CHASSIS/ATTACHMENTS

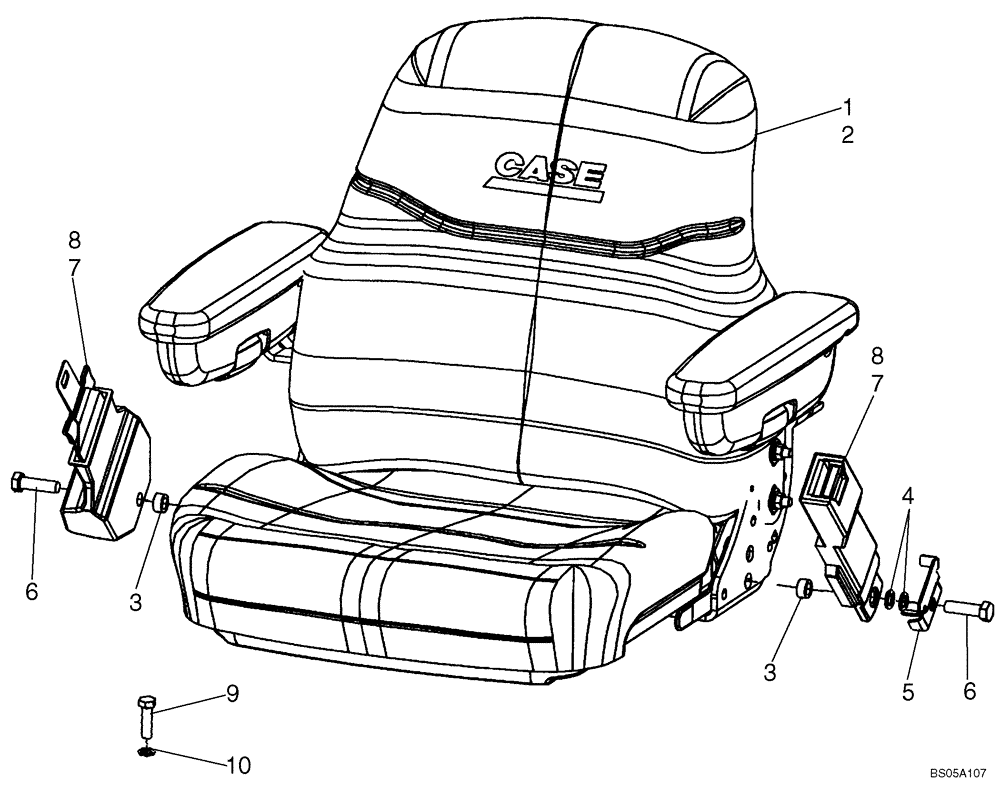

Схема запчастей Case 570MXT - (09-32B) - SEAT - MOUNTING (SEARS MECHANICAL SUSPENSION) (09) - CHASSIS/ATTACHMENTS
2
8
8
5
1
10
7
9
4
6
7
6
3
3

Артикул

Название

Примечание

Количество

1

87564196

SEAT ASSY.

Mechanical Suspension, Sears, Vinyl, With Armrests; Swivels To Right Only; The Seat Tube is Located 5 mm (3/16 in) Farther Rearward;See Figure 09-36A; Replaces 87454298 Seat Assy

1шт.

2

87564193

SEAT ASSY.

Mechanical Suspension, Sears, Cloth, With Armrests; Swivels To Right Only; The Seat Tube is Located 5 mm (3/16 in) Farther Rearward;See Figure 09-36A; Replaces 87454297 Seat Assy

1шт.

3

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

4

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

Left-Hand Side

2шт.

5

87310149

BRACKET

Belt Mounting

1шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

7

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

If used

1шт.

9

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

Seat Pedestal to Floor

4шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

Выбрано товаров: 10
