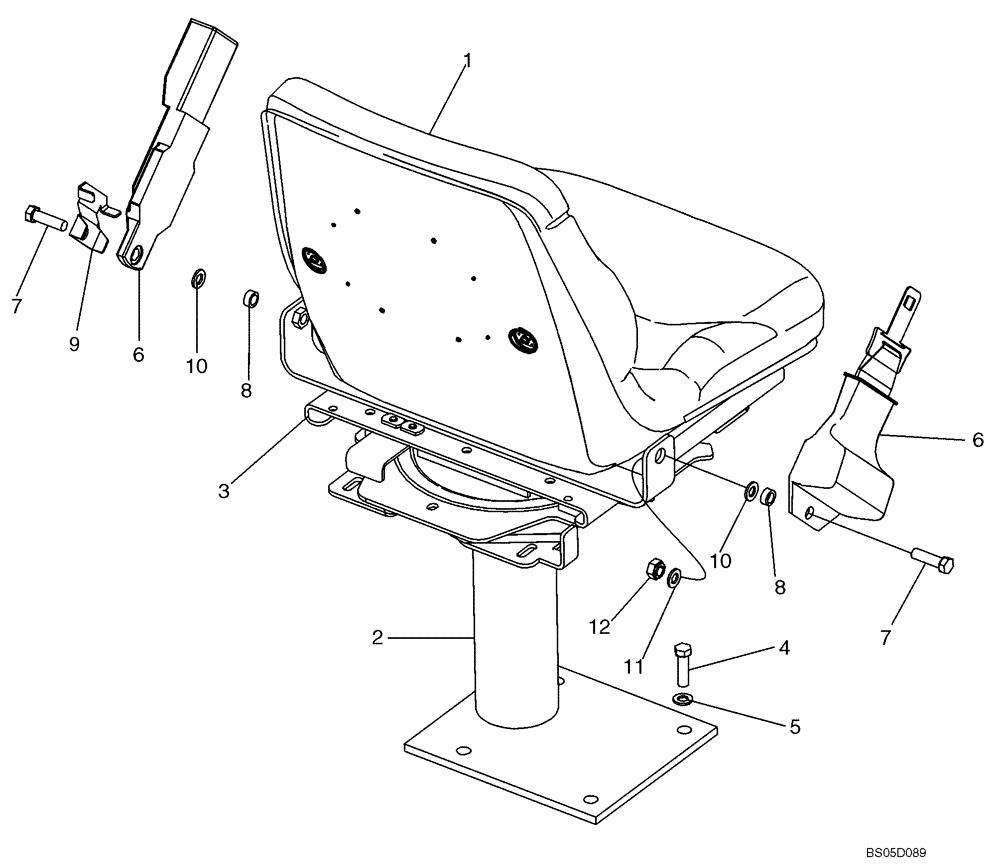

Запчасти Case 570MXT (09-32A) - SEAT - MOUNTING (SEARS) (09) - CHASSIS/ATTACHMENTS

87564192

SEAT ASSY.

Standard, Vinyl, Without Armrest, Sears Brand; Includes Seat, Swivel and Pedestal, and Swivel Bearing Kit, Ref 1 - 3; The Seat Tube is Located 5 mm (3/16 in) Farther Rearward; Seat Swivels To The Right Only; Replaces 87454296 Seat Assy

1шт.

1

87338681

SEAT BACK

Seat Only

1шт.

2

87577800

SEAT ACCESSORY

Swivel and Pedestal; Component Parts Not Serviced Separately; The Seat Tube is Located 5 mm (3/16 in) Farther Rearward;; Replaces 87338683 Pedestal

1шт.

3

87308132

BEARING ASSY

Swivel Bearing; Includes (1) Bolt, (8) Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer; Component Parts Not Serviced Separately

1шт.

4

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

6

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used

1шт.

6

87408889

SAFETY BELT ,50.80 mm W

Retractable, If used

1шт.

7

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

8

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

9

87310149

BRACKET

Left-Hand; Seat Belt Mounting/Standard Seat

1шт.

10

495-81169

WASHER,17/32" x 2 1/2" x .120"

2шт.

11

496-81010

WASHER

15/32 x 1 x 7/64

4шт.

12

232-4617

LOCK NUT,7/16"-20, GC

2шт.
