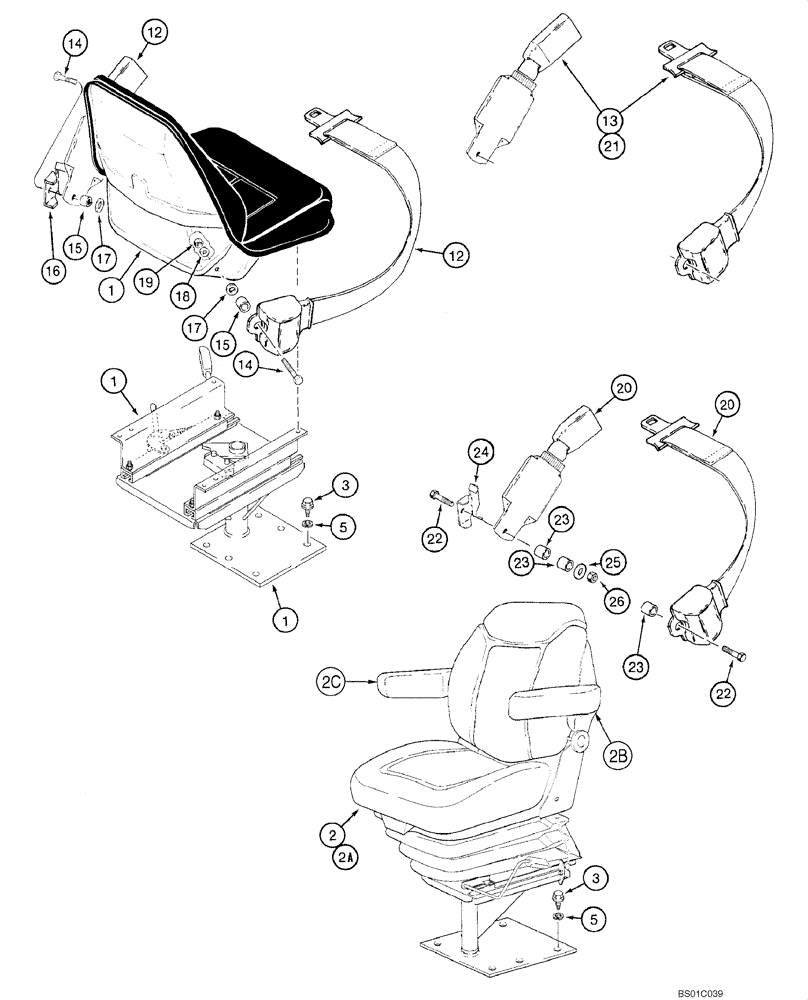

Запчасти Case 570MXT (09-32) - SEAT - MOUNTING (MILSCO) (09) - CHASSIS/ATTACHMENTS

1

414945A1

SEAT ASSY.

Standard, Vinyl, Without Armrest, Milsco Brand; Includes Seat, Pedestal, and Support, Seat Swivels To The Right Only, See Figure(s) 09-33, 09-34

1шт.

2

413014A1

SEAT ASSY.

Suspension, Cloth, Without Armrest, Milsco Brand; Seat Swivels To The Right Only, See Figure(s) 09-35, 09-36

1шт.

2a

413013A1

SEAT ASSY.

Suspension, Vinyl, Without Armrest, Milsco Brand; Includes Seat, Suspension, and Pedestal, Seat Swivels To The Right Only, See Figure(s) 09-35, 09-36

1шт.

2b

292262A1

ARMREST ASSY.

LH

1шт.

2c

292263A2

ARMREST ASSY.

RH

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

5

892-11012

LOCK WASHER,M12

4шт.

12

87408889

SAFETY BELT ,50.80 mm W

If used; Seat Belt Mounting/Standard Seat; Replaces D150377

1шт.

13

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used; Seat Belt Mounting/Standard Seat; Replaces R58418

1шт.

14

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

15

D150391

SPACER

2шт.

16

D150392

BRACKET

Left-Hand; Seat Belt Mounting/Standard Seat

1шт.

17

495-81169

WASHER,17/32" x 2 1/2" x .120"

2шт.

18

496-81010

WASHER

15/32 x 1 x 7/64

4шт.

19

232-4617

LOCK NUT,7/16"-20, GC

2шт.

20

87408889

SAFETY BELT ,50.80 mm W

If used; Seat Belt Mounting/Suspension Seat; Replaces D150377

1шт.

21

87408888

SAFETY BELT ,76.20 mm W

Retractable, If used; Seat Belt Mounting/Suspension Seat; Replaces R58418

1шт.

22

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

23

D150391

SPACER

2шт.

24

D150392

BRACKET

Left-Hand; Seat Belt Mounting/Suspension Seat

1шт.

25

496-81010

WASHER

15/32 x 1 x 7/64

2шт.

26

232-4617

LOCK NUT,7/16"-20, GC

2шт.
