(09-30A) - PANEL, REAR CLOSURE (CAB MODELS)(IF USED)

Запчасти Case 570MXT (09-30A) - PANEL, REAR CLOSURE (CAB MODELS)(IF USED) (09) - CHASSIS/ATTACHMENTS

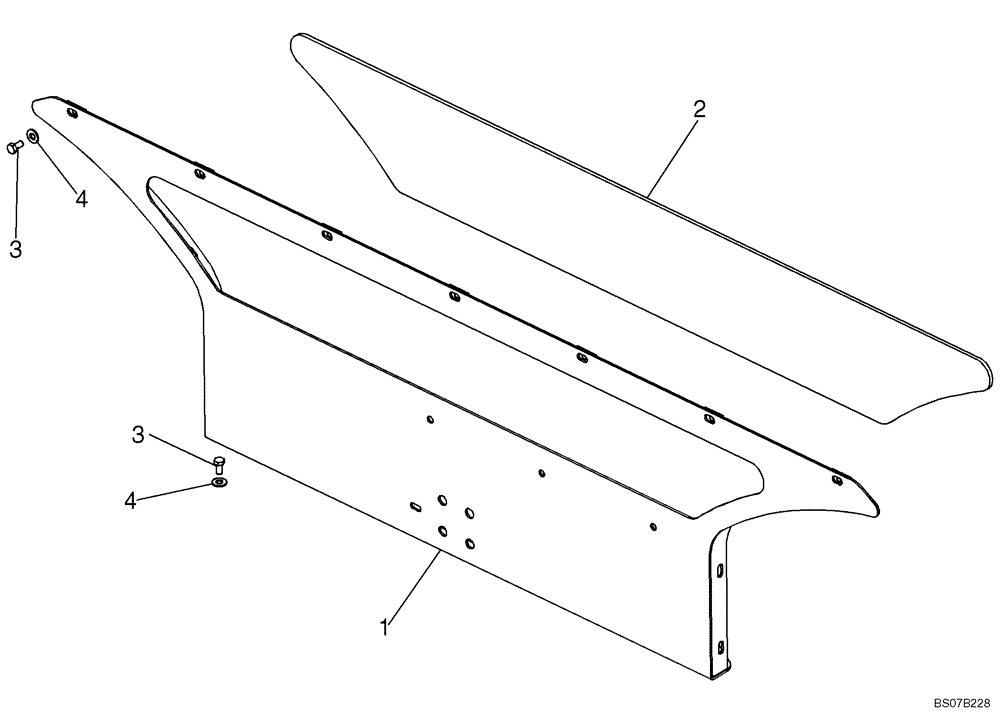

Схема запчастей Case 570MXT - (09-30A) - PANEL, REAR CLOSURE (CAB MODELS)(IF USED) (09) - CHASSIS/ATTACHMENTS
3
4
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

USED WITH 87342963 CHASSIS / MODELS WITH STRAIGHT DRAFT ARMS WITH ADJUSTING CALIPER 3 PT. HITCH FRAME

1шт.

1

87609648

COVER ASSY

Rear Closure Panel; Three Point Hitch; Incl. Ref 2

1шт.

2

87609594

GLASS

Glass

1шт.

3

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

M8 x 16

11шт.

4

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11шт.

Выбрано товаров: 5
