Запчасти Case 570MXT (09-30) - PANEL, REAR CLOSURE - FENDER SUPPORTS (IF USED) (09) - CHASSIS/ATTACHMENTS

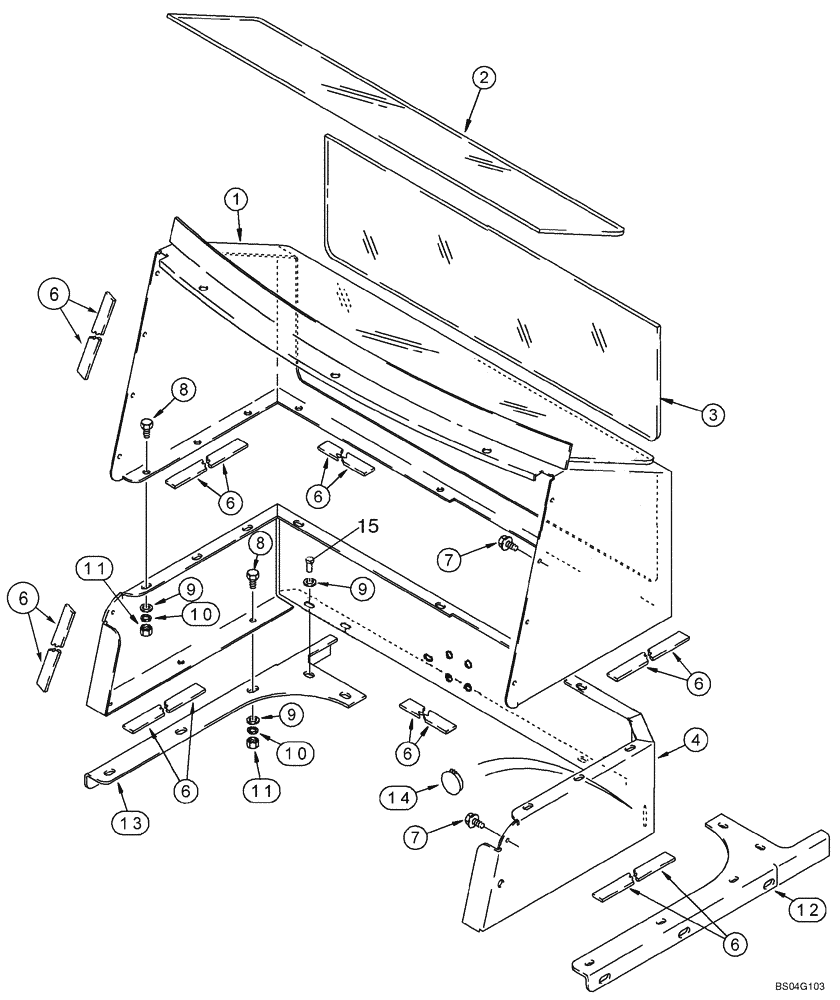

Схема запчастей Case 570MXT - (09-30) - PANEL, REAR CLOSURE - FENDER SUPPORTS (IF USED) (09) - CHASSIS/ATTACHMENTS
11
7
6
11
3
7
4
10
12
6
8
1
6
6
6
9
15
10
14
2
6
13
9
6
8
9

Артикул

Название

Примечание

Количество

1

401166A1

SHIELD

Incl. 2, 3, Cab Models

1шт.

2

401393A1

GLASS

1шт.

3

401167A1

GLASS

1шт.

4

404667A3

PANEL

Replaces 404667A1, 404667A2

1шт.

6

183415A1

SEAL

5000 mm (196-7/8 in); Cut As Required

1шт.

7

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

10шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

15шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

21шт.

10

892-11008

LOCK WASHER,8mm ID

18шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

18шт.

12

139446A1

SUPPORT

RH

1шт.

13

139448A1

SUPPORT

LH

1шт.

14

353-415

PLUG,Dome, 1.500" hole, Nylon

Black, Plastic

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

Выбрано товаров: 14
