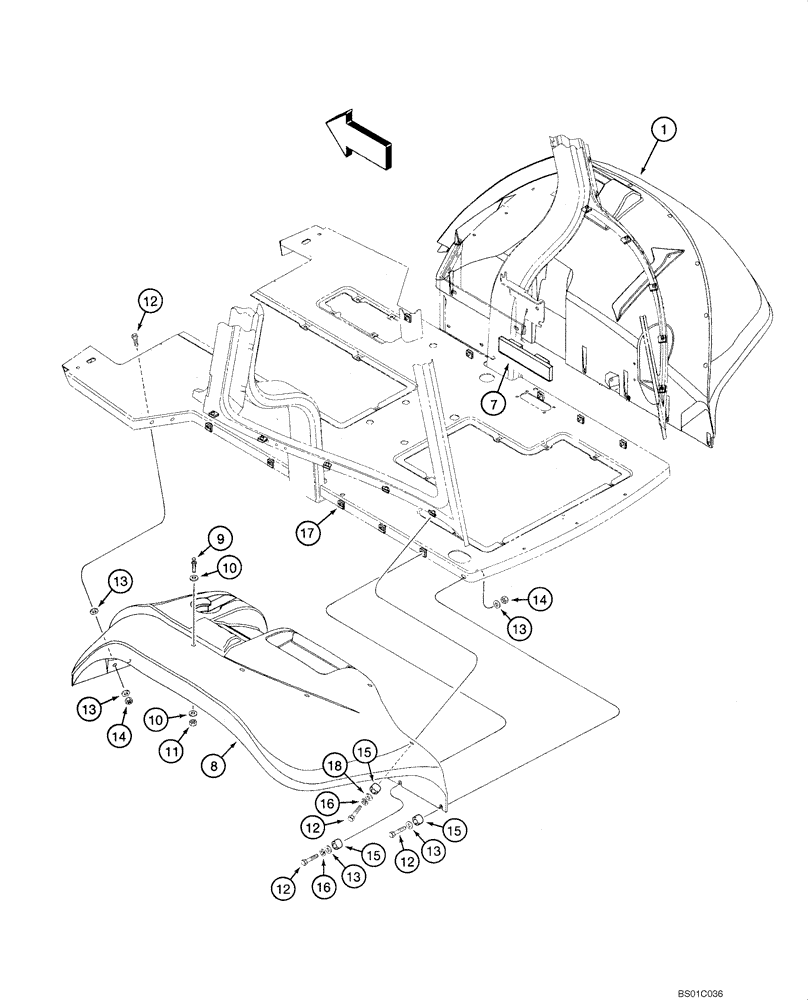

Запчасти Case 570MXT (09-29) - FENDERS, REAR (CAB MODELS) (IF USED) (09) - CHASSIS/ATTACHMENTS

USED WITH 399303A1, 87326904 CHASSIS / MODELS WITH OFFSET DRAFT ARMS 3 PT HITCH FRAME

1шт.

1

132134A1

FENDER

Right-Hand

1шт.

7

188482A1

SEALING STRIP

2шт.

8

132133A1

FENDER

Left-Hand

1шт.

345-187

SEALANT

Between Fenders and Cab

1шт.

9

139362A1

BALL JOINT

1шт.

10

495-81002

WASHER,3/8"

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

22шт.

13

495-81001

WASHER,5/16"

16шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

144282A1

SPACER

16 x 10 mm lg

22шт.

16

892-11008

LOCK WASHER,8mm ID

18шт.

17

833-40408

NUT,M8, U

20шт.

18

495-21038

WASHER,5/16"

10шт.
