(09-28A) - FENDER, REAR (CANOPY MODELS) (IF USED)

Запчасти Case 570MXT (09-28A) - FENDER, REAR (CANOPY MODELS) (IF USED) (09) - CHASSIS/ATTACHMENTS

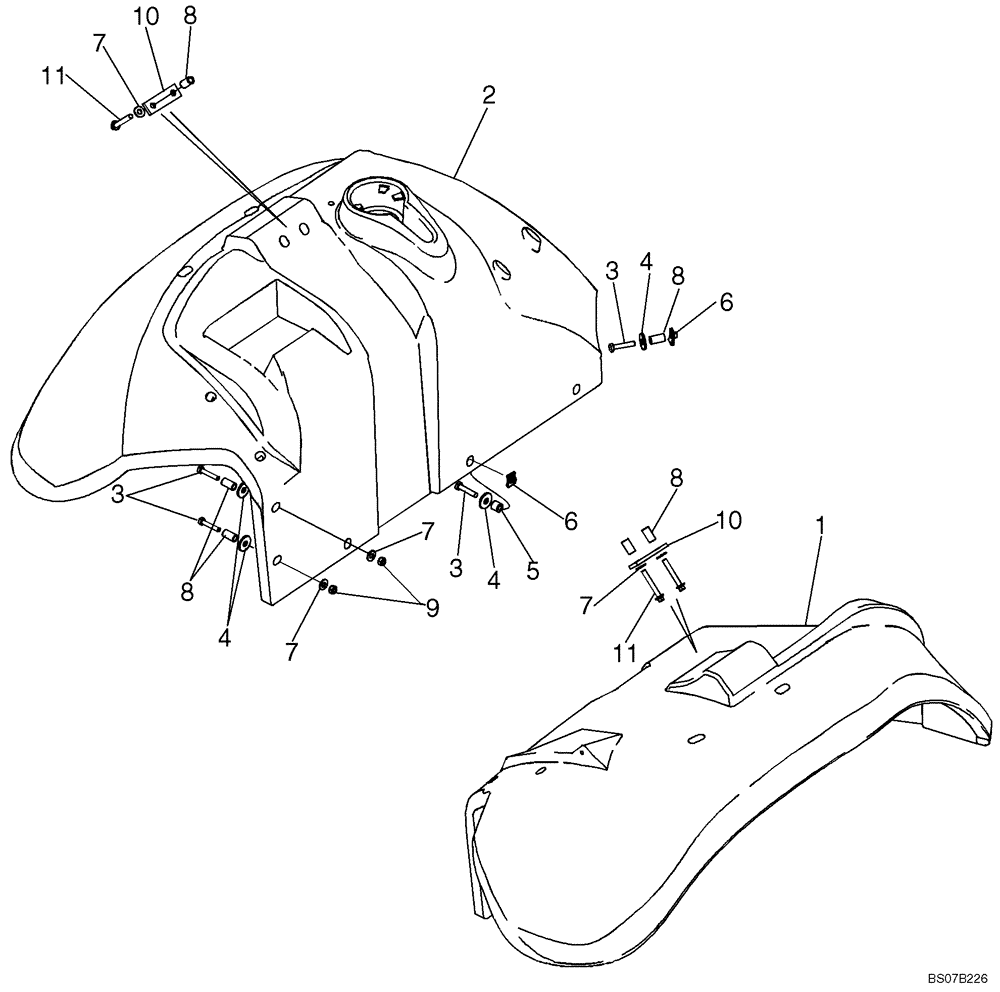

Схема запчастей Case 570MXT - (09-28A) - FENDER, REAR (CANOPY MODELS) (IF USED) (09) - CHASSIS/ATTACHMENTS
8
7
8
11
7
11
4
8
10
2
6
4
4
7
5
10
1
3
9
3
7
8
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

FENDERS USED WITH 87342963 CHASSIS / MODELS WITH STRAIGHT DRAFT ARMS WITH ADJUSTING CALIPER 3 PT HITCH FRAME

1шт.

SEE FIGURE 9-28 FOR REAR PANEL

1шт.

1

87573625

FENDER

RH

1шт.

2

87573629

FENDER

LH

1шт.

3

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

10шт.

4

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

Flat, M10

10шт.

5

87593433

SPACER,12.6mm ID x 16mm OD x 14mm Thk

14 mm long Spacer

4шт.

6

833-40408

NUT,M8, U

8шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

8

87580819

SPACER

26 mm long Spacer

10шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

10

87593532

STEEL PLATE

Fender Support

2шт.

11

87582902

SELF-TAP SCREW,Hex, M8 x 1.25 x 55mm

Flange Head Bolt, M8 x 55

4шт.
