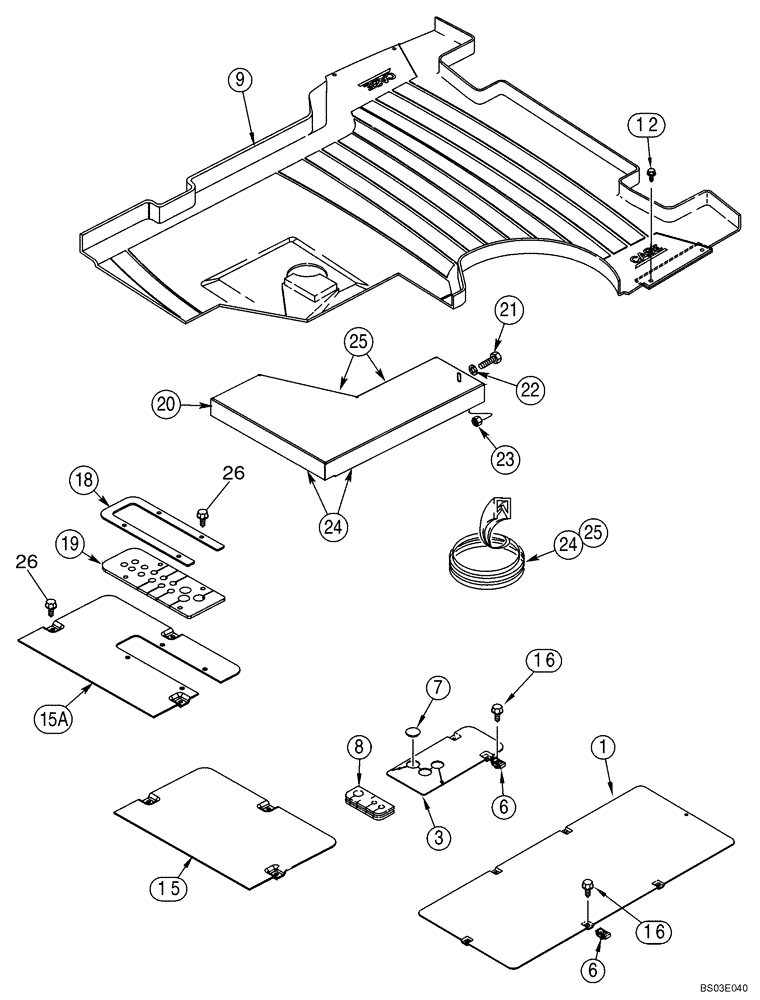

Запчасти Case 570MXT (09-27) - PLATES, FLOOR - FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

234913A1

LARGE PLATE

PLATE, LARGE Front

1шт.

3

127377A1

LARGE PLATE

PLATE, LARGE Loader Control Lever; Models Without Husco Loader Valve

1шт.

3

87436076

COVER

Loader Control Lever; Models With Husco Loader Valve; Not Illustrated

1шт.

6

833-40406

NUT,M6, U

13-17шт.

7

353-422

PLUG,Dome, 1.250" hole, Nylon

Models without Clam Bucket

1шт.

8

127378A3

RUBBER INSULATOR

Floor; Models Without Husco Loader Valve

1шт.

8

393623A1

GROMMET

Insulator; Models With Husco Loader Valve; Not Illustrated

1шт.

9

426091A1

FLOOR MAT

Floormat; Cab Models

1шт.

12

87310085

SELF-TAP SCREW,HWH, M10 x 25.4mm

No. 10 x 1, Hex Washer Head, Self-Tapping, Stainless Steel; Replaces 280-16516 Non-Stainless Steel Screw Used On Some Models

4шт.

15

225101A1

CONTACT

Rear; Models Without Three Point Hitch

1шт.

15a

399756A1

PLATE

Rear; Models With Three Point Hitch

1шт.

16

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25, Includes Washer, Stainless Steel; Replaces 233724A1 Non-Stainless Steel Screw Used On Some Models

6-10шт.

18

400659A1

STRAP

Models With Three Point Hitch

1шт.

19

399748A4

GROMMET

Models With Three Point Hitch; Replaces 399748A2, 399748A3

1шт.

20

418490A3

COVER

Models Without Three Point Hitch; Replaces 418490A1, 418490A2

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

23

833-40310

NUT,M10, U

1шт.

24

191047A1

MOLDING

315 mm (12-13/32 in) lg

1шт.

25

191046A1

ORNAMENTAL STRIP

650 mm

2шт.

26

435637A2

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9

With Washer; M6 x 25

3шт.
