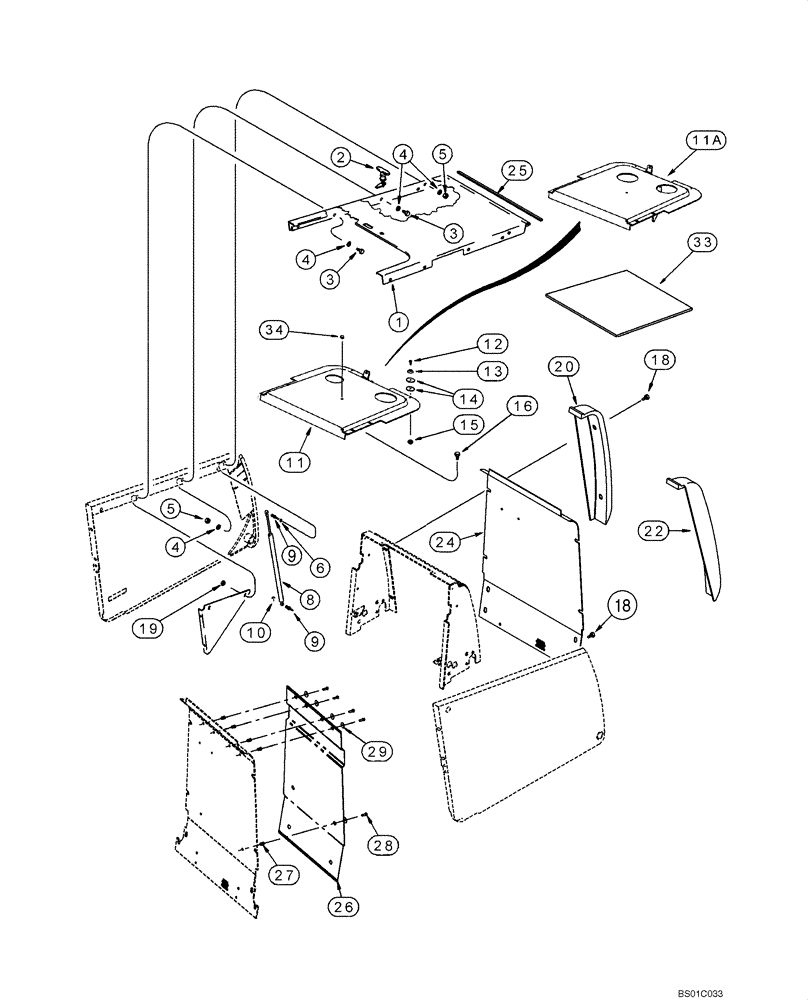

Запчасти Case 570MXT (09-26) - HOOD - GRILLE AND CHAFF SCREEN (09) - CHASSIS/ATTACHMENTS

1

401843A1

HOOD

1шт.

2

175599A1

LATCH

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

10шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

14шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

114980A1

GAS STRUT

Spring

2шт.

9

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

4шт.

10

F44883

CLIP,DIN 71805 - S10

4шт.

11

401844A1

HOOD ASSY.

Models Without Turbocharged Engine

1шт.

11a

401845A1

HOOD ASSY.

Models With Turbocharged Engine

1шт.

12

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

13

109879A1

SPACER,5.5mm ID x 30mm OD

2шт.

14

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

4шт.

15

86625057

NUT,#10-24, GB

2шт.

16

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

4шт.

18

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

8шт.

19

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

20

381927A1

BUMPER

Left-Hand

1шт.

22

381926A1

BUMPER

Right-Hand

1шт.

24

355542A2

GRILLE

1шт.

25

233262A1

SEALING STRIP,20mm W x 596mm L x 6mm Thk

1шт.

26

253889A1

SCREEN

Chaff

1шт.

27

255447A1

THREADED INSERT

8шт.

28

257381A1

BOLT

8шт.

29

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

33

187389A1

LARGE PLATE

PLATE, LARGE Insulation; If Used

1шт.

34

353-402

PLUG,Dome, .375" hole, Nylon

Models without Windshield Washer

1шт.
