(09-24) - BAFFLE - PLATE (MODELS WITHOUT AIR CONDITIONING, USED WITH FUEL COOLER)

Запчасти Case 570MXT (09-24) - BAFFLE - PLATE (MODELS WITHOUT AIR CONDITIONING, USED WITH FUEL COOLER) (09) - CHASSIS/ATTACHMENTS

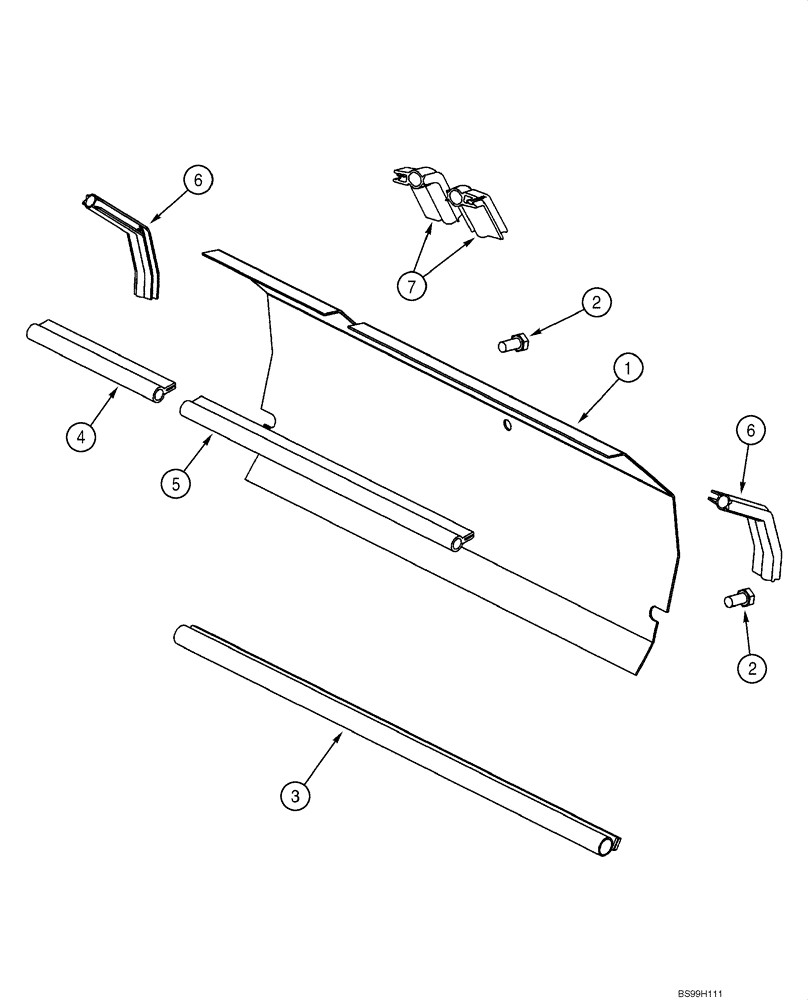

Схема запчастей Case 570MXT - (09-24) - BAFFLE - PLATE (MODELS WITHOUT AIR CONDITIONING, USED WITH FUEL COOLER) (09) - CHASSIS/ATTACHMENTS
2
6
1
2
4
6
3
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

362006A1

PLATE

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

3

245450A1

RUBBER SEAL,571mm L

571 mm (22-1/2 in)

1шт.

4

246063A1

SEAL

170 mm (6-11/16 in); Cut From 233749A1

1шт.

5

246064A1

SEAL

365 mm (14-3/8 in); Cut From 233749A1

1шт.

6

185493A1

SEAL

160 mm (6-5/16 in); Cut From 137315A1

2шт.

7

363403A1

SEAL

57 mm (2-1/4 in)

2шт.
