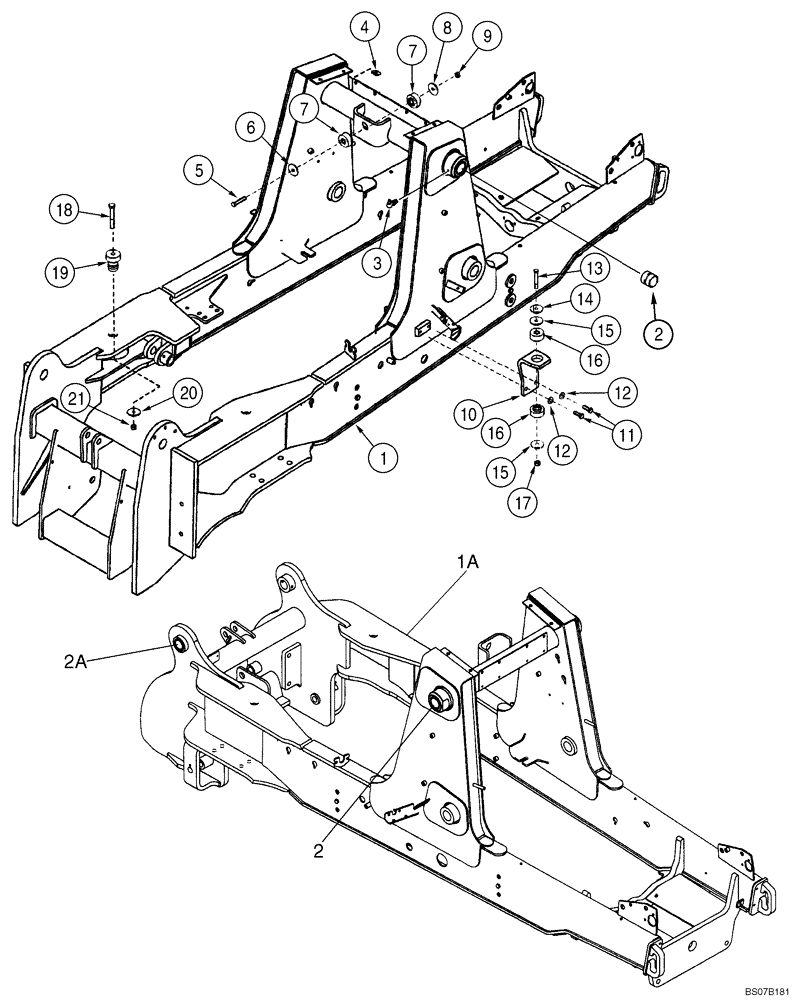

Запчасти Case 570MXT (09-18) - CHASSIS - MOUNTS, POD (09) - CHASSIS/ATTACHMENTS

1

399303A1

CHASSIS

Incl. 2, Used In Production, For Service Order 419861A1, Chassis Kit, Which Incl. Chassis and Decals; Models Without Husco Loader Valve

1шт.

1

87326904

CHASSIS

Replaces 87448252, 87307002; Incl. 2, Models With Husco Loader Valve; Not Illustrated

1шт.

1a

87342963

FRAME

Chassis Incl. Ref 2, 2A; Models With Straight Draft Arms W/Adjusting Caliper 3 Pt Hitch Frame; See Figure 09-13B for Hitch Frame

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

2шт.

2a

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

833-40310

NUT,M10, U

4шт.

5

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

1шт.

6

495-81259

WASHER,21/32" x 2" x .238"

1шт.

7

D138565

SHOCK ABSORBER

2шт.

8

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

16.25 x 70 x 4.5 thk

1шт.

9

829-1416

NUT,M16, Cl 10

1шт.

10

141249A1

SUPPORT

2шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

2шт.

14

495-81259

WASHER,21/32" x 2" x .238"

2шт.

15

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

16.25 x 70 x 4.5 thk

4шт.

16

D138565

SHOCK ABSORBER

Front

4шт.

17

829-1416

NUT,M16, Cl 10

2шт.

18

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

M6 x 120; 10.9

2шт.

19

A141451

SHOCK ABSORBER

Rubber, Rear

2шт.

20

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

16.25 x 70 x 4.5 thk

2шт.

21

829-1416

NUT,M16, Cl 10

2шт.
