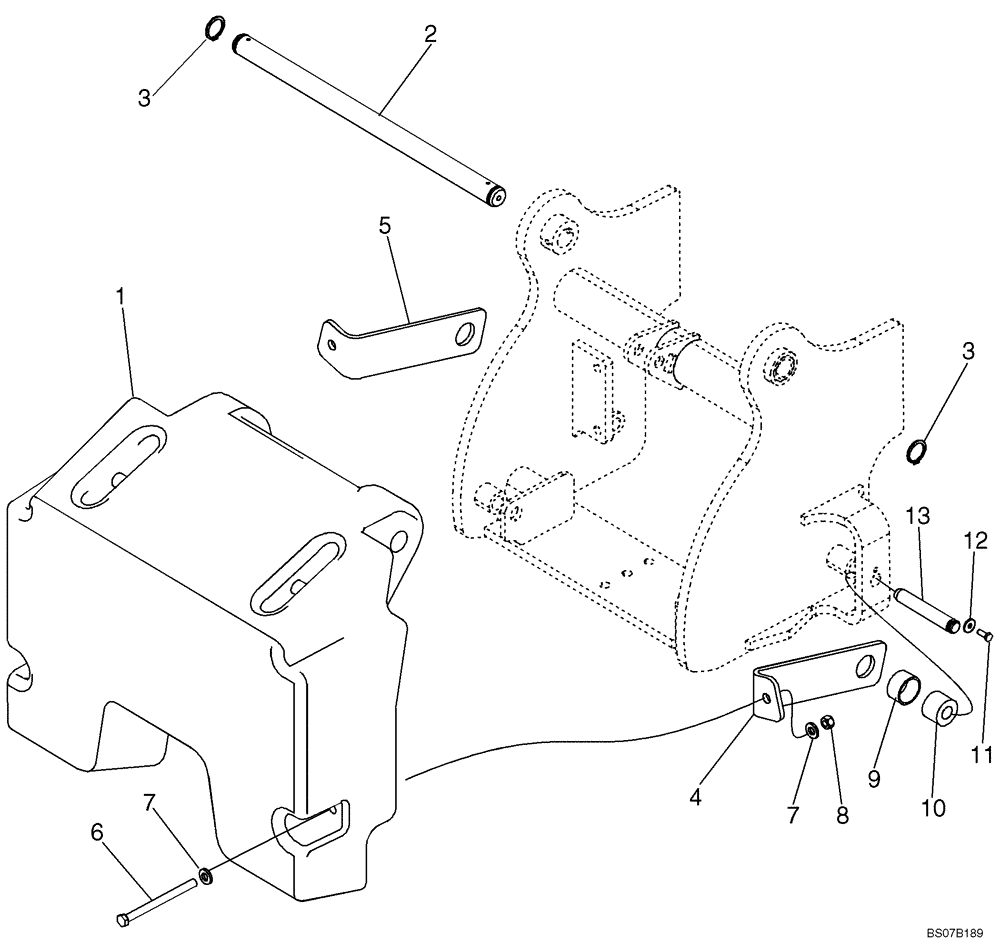

Запчасти Case 570MXT (09-17B) - COUNTERWEIGHT, REAR (3000 LBS) (09) - CHASSIS/ATTACHMENTS

1

87341415

COUNTERWEIGHT,Rear, 3000 Lb

Rear, Used With 87342963 Chassis

1шт.

2

87518226

PIN

1шт.

3

103-16175

SNAP RING,#175, Ext

2шт.

4

87521725

MOUNTING PLATE

RH

1шт.

5

87521726

MOUNTING PLATE

LH

1шт.

6

828-16200

BOLT,Hex, M16 x 2 x 200mm, Cl 10.9

He

2шт.

7

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

8

829-1416

NUT,M16, Cl 10

2шт.

9

87592901

SPACER

Inner

2шт.

10

87592902

SPACER

Outer

2шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

2шт.

13

87389840

GROOVED PIN

2шт.
