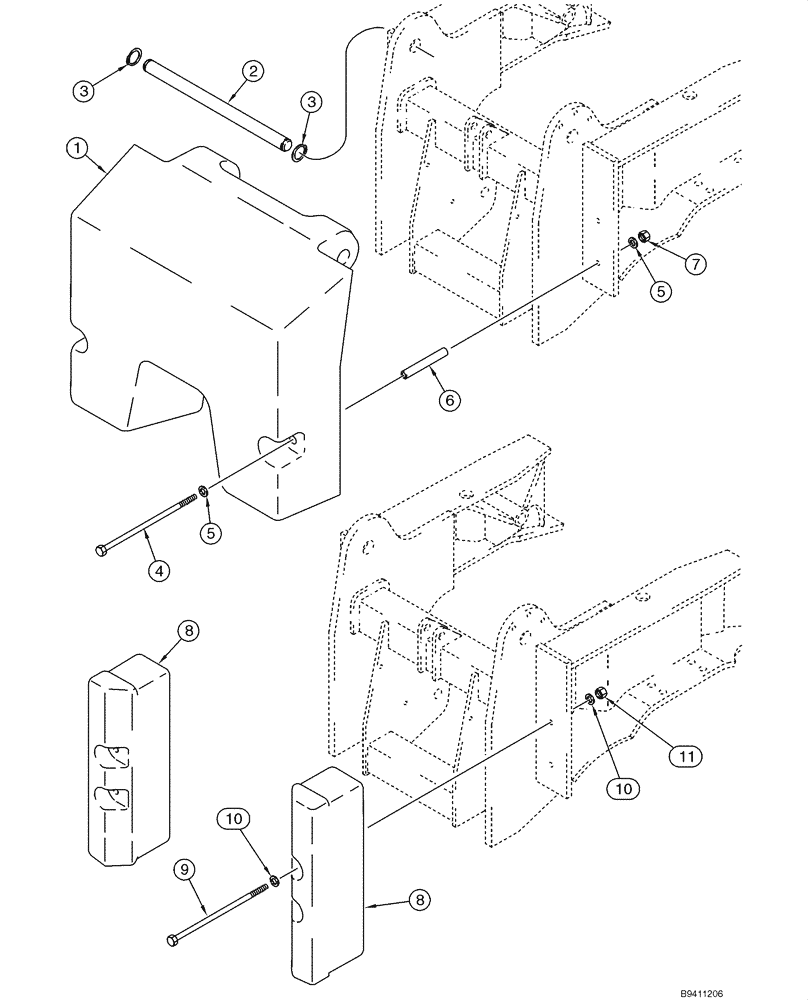

Запчасти Case 570MXT (09-16) - COUNTERWEIGHT, REAR (300 LBS & 3000 LBS) - BOX SCRAPER (09) - CHASSIS/ATTACHMENTS

1

131490A1

COUNTERWEIGHT

1361 kg (3000 lbs); Models Without Three Point Hitch

1шт.

2

130228A1

PIN,44.45mm OD x 743mm L

1шт.

3

103-16175

SNAP RING,#175, Ext

2шт.

4

180537A1

BOLT,Hex, M16 x 2 x 415mm, Cl 8.8

M16 x 50

2шт.

5

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

6

180510A1

SPACER

2шт.

7

829-1416

NUT,M16, Cl 10

2шт.

8

134295A1

BALANCER

136 kg (300 lbs); Models With Three Point Hitch

2шт.

9

814-16250

BOLT,Hex, M16 x 2 x 250mm, Cl 8.8

4шт.

10

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

Lower Bolt Hole Now Requires (2) Washers Under Bolt Head

8-10шт.

11

829-1416

NUT,M16, Cl 10

4шт.

REF

INSTRUCTION

BOX SCRAPER

1шт.

234326A1

ATTACHMENT

BOX, 84 inch Scarifier W/Hd Grdr Edge; Component Parts Not Serviced Separately; Not Illustrated

1шт.
