(09-14) - DRAWBAR, RIGID - HITCH, THREE POINT

Запчасти Case 570MXT (09-14) - DRAWBAR, RIGID - HITCH, THREE POINT (09) - CHASSIS/ATTACHMENTS

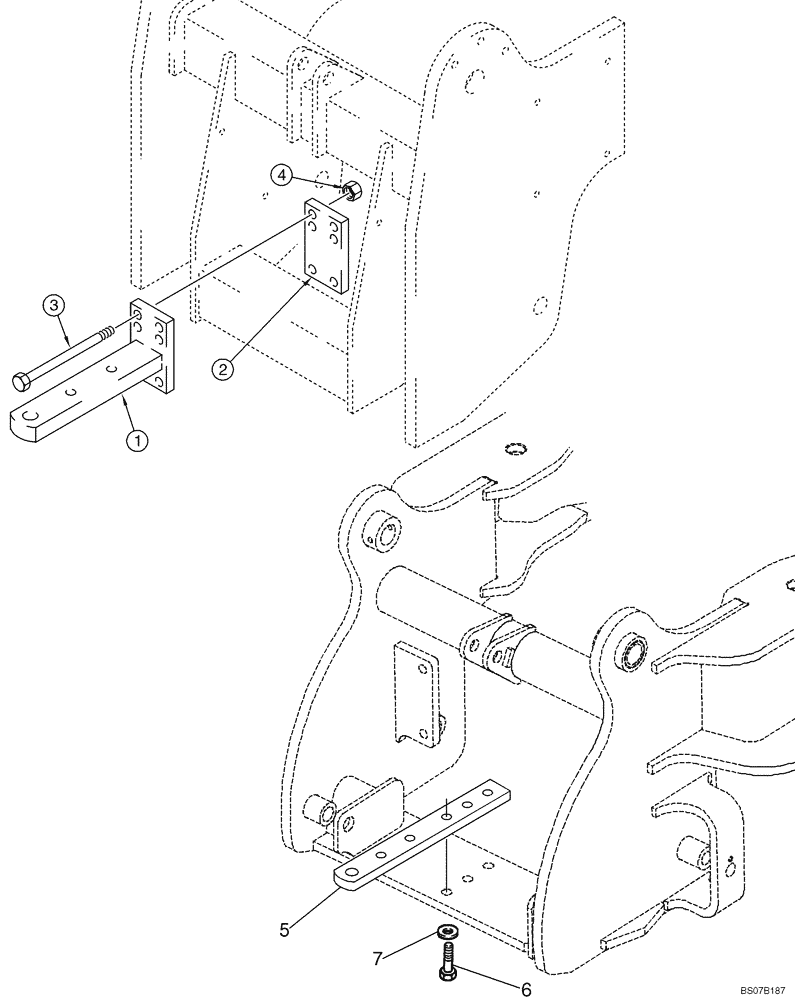

Схема запчастей Case 570MXT - (09-14) - DRAWBAR, RIGID - HITCH, THREE POINT (09) - CHASSIS/ATTACHMENTS
5
3
1
7
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D136894

DRAWBAR

Used With 399303A1, 87326904 Chassis

1шт.

2

D136893

LARGE PLATE

PLATE, LARGE

1шт.

3

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

87346007

MOUNTING PLATE

Drawbar; Used With 87342963 Chassis

1шт.

6

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

Thread to Head, M20 x 60; 10.9

3шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

3шт.
