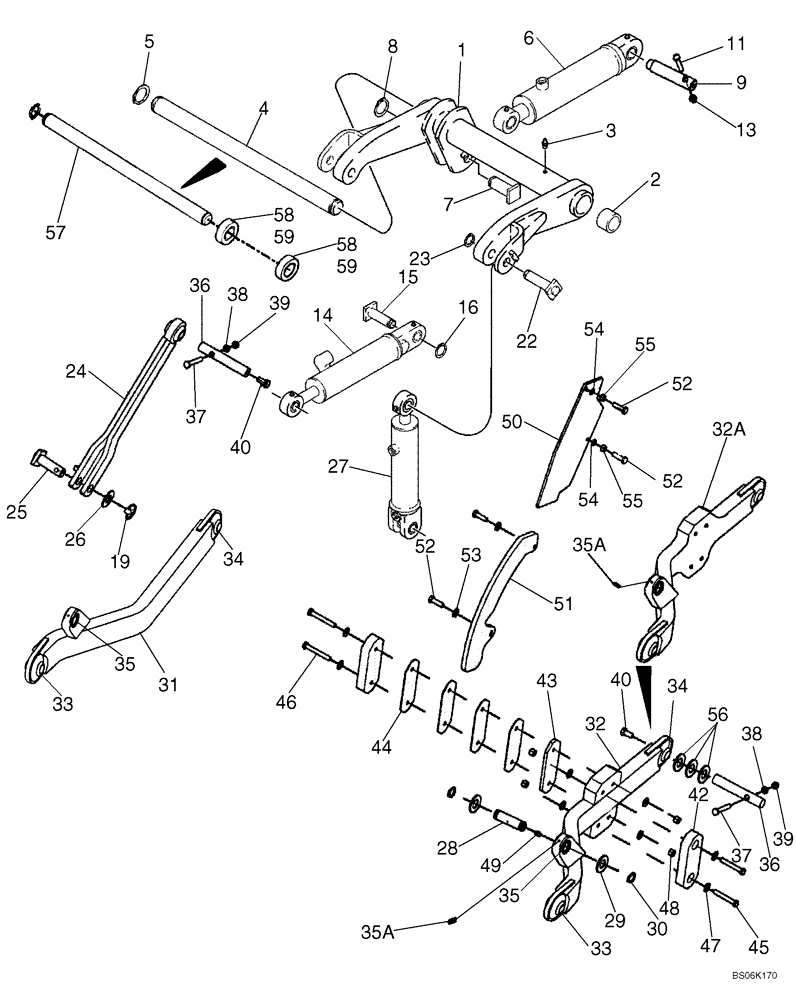

Запчасти Case 570MXT (09-13A) - FRAME - HITCH, THREE POINT (IF USED) (09) - CHASSIS/ATTACHMENTS

1

130113A1

FRAME ASSY

Rockshaft; Incl. 2

1шт.

2

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

4

130228A1

PIN,44.45mm OD x 743mm L

Rockshaft; 1.75 (1-3/4) dia x 743 mm (29-1/4 in) lg

1шт.

5

103-16175

SNAP RING,#175, Ext

2шт.

6

296715A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 207.2mm Stroke

76 ID x 207 mm strk; Lift; See Figure 08-35

1шт.

7

199243A1

PIN,31.8mm OD x 96.5mm L

Lift Cylinder Rod End

1шт.

8

103-16125

SNAP RING,#125, Ext

1шт.

9

244356A1

PIN

Lift Cylinder Closed End

1шт.

11

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

64 ID x 178 mm strk; Pitch; See Figure 08-37

1шт.

138235A1R

REMAN-HYD CYLINDER

570MXT

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

15

199189A1

PIN,25.4mm OD x 104.1mm L

Pitch Cylinder Closed End

1шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1шт.

19

D33805

PIN

Replaces 339466A1 Pin Used In Production

1шт.

22

199296A1

PIN

Tilt Cylinder Rod End

2шт.

23

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

2шт.

24

D51276

STAND

Stationary

1шт.

25

433059A1

PIN ASSY.

Replaces D51297

1шт.

26

495-11106

WASHER,1", SAE

1шт.

27

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

64 ID x 160 mm strk; Tilt; See Figure 08-36

1-2шт.

28

87317419

GROOVED PIN,25.34mm OD x 95mm L

1-2шт.

29

495-11106

WASHER,1", SAE

2-4шт.

30

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

2-4шт.

31

87318215

ARM ASSY.

LH; Incl. Ref 33 - 35A

1шт.

32

87318213

ARM ASSY.

RH; Incl. Ref 33 - 35A; No Longer Available, Order 87553953 Arm, Ref 32A

1шт.

32a

87553953

ARM ASSY.

RH; Incl. Ref 33 - 35A

1шт.

33

15-18

SPHERICAL BEARING,28.57mm ID x 80.43mm OD x 44.45mm W

1шт.

34

D149451

BALL JOINT

1шт.

35

365820

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

1шт.

35a

878-20612

SET SCREW,Hex Skt, M6 x 12mm, Cone Pt

1шт.

36

139100A1

PIN,25.38mm OD x 164mm L

2шт.

37

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

38

892-11010

LOCK WASHER,M10

2шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

40

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

42

87317414

BLOCK

Wear

2шт.

43

87317416

SPACER

1шт.

44

87317417

SHIM

5шт.

45

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

46

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

47

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 86625253 Used On Some Models

8шт.

48

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1-2шт.

50

434142A1

WEAR PLATE

1шт.

51

87317413

WEAR PLATE

1шт.

52

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

53

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 86625253 Used On Some Models

2шт.

54

892-11010

LOCK WASHER,M10

2шт.

55

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

56

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

3шт.

87537539

REPAIR KIT

Three Point Hitch Rockshaft; Strengthens Shaft Pivot Area; Incl. Ref 57 - 59, Plus Instructions

1шт.

57

87518226

PIN

Rockshaft; 1.75 (1-3/4) dia x 797 mm (31-3/8 in) lg

1шт.

58

87519774

BOSS

Welded to Chassis Frame; Incl. Ref 59

2шт.

59

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1шт.
