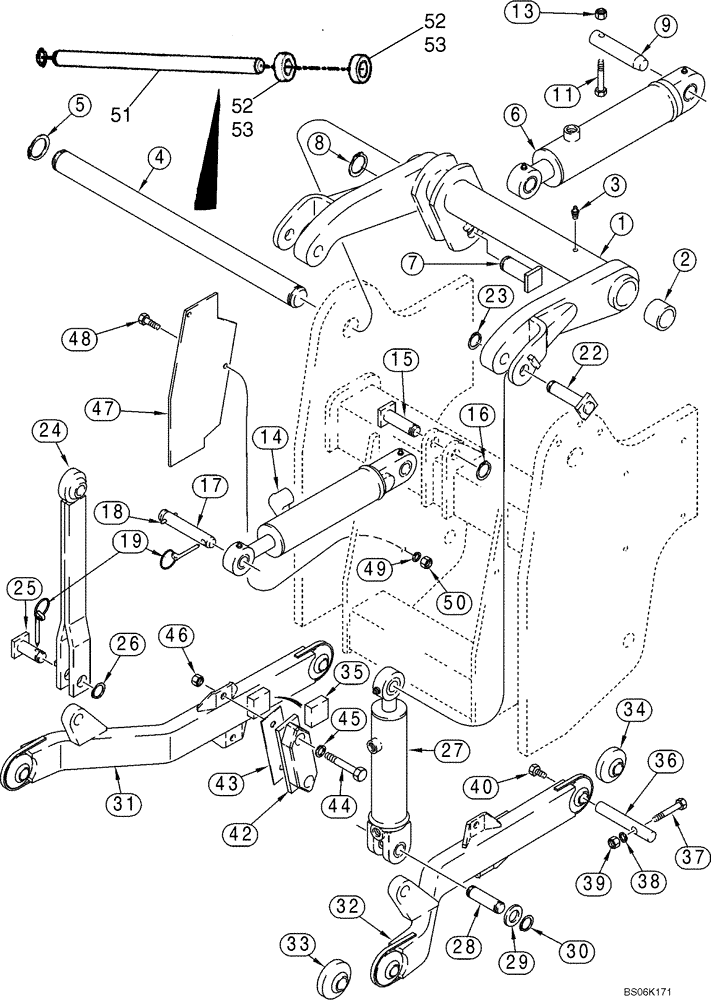

Запчасти Case 570MXT (09-13) - FRAME - HITCH, THREE POINT (IF USED) (09) - CHASSIS/ATTACHMENTS

1

130113A1

FRAME ASSY

Rockshaft; Incl. 2

1шт.

2

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

4

130228A1

PIN,44.45mm OD x 743mm L

Rockshaft; 1.75 (1-3/4) dia x 743 mm (29-1/4 in) lg

1шт.

5

103-16175

SNAP RING,#175, Ext

2шт.

6

296715A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 207.2mm Stroke

76 ID x 207 mm strk; Lift; See Figure 08-35

1шт.

7

199243A1

PIN,31.8mm OD x 96.5mm L

Lift Cylinder Rod End

1шт.

8

103-16125

SNAP RING,#125, Ext

1шт.

9

244356A1

PIN

Lift Cylinder Closed End

1шт.

11

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

64 ID x 178 mm strk; Pitch; See Figure 08-37

1шт.

138235A1R

REMAN-HYD CYLINDER

570MXT

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

15

199189A1

PIN,25.4mm OD x 104.1mm L

Pitch Cylinder Closed End

1шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1шт.

17

199280A1

PIN,25.35mm OD x 153mm L

Pitch Cylinder To Equipment; Incl. 18; If Used

1шт.

18

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1шт.

19

D33805

PIN

Replaces 339466A1 Pin Used In Production

2шт.

22

199296A1

PIN

Tilt Cylinder Rod End

2шт.

23

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

2шт.

24

D51276

STAND

Stationary

1шт.

25

433059A1

PIN ASSY.

Replaces D51297

1шт.

26

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1шт.

27

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

64 ID x 160 mm strk; Tilt; See Figure 08-36

1шт.

28

D30609

PIN,25.4mm OD x 95.25mm L

Tilt Cylinder Closed End; If Used

1шт.

28

86982816

PIN ASSY.,25.28mm OD x 114mm L

Lift Cylinder; Right Hand; If Used

1-2шт.

29

495-11106

WASHER,1", SAE

2-4шт.

30

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

2шт.

31

195611A1

LOWER LINK

Left-Hand; Incl. 33 - 35; Also Includes Serviceable 365820 Bushing In Lug Lift Eye and Nonserviceable M6 x 12 Set Screw

1шт.

32

195610A1

LOWER LINK

Right-Hand; Incl. 33 - 35; Also Includes Serviceable 365820 Bushing In Lug Lift Eye and Nonserviceable M6 x 12 Set Screw

1шт.

33

15-18

SPHERICAL BEARING,28.57mm ID x 80.43mm OD x 44.45mm W

1шт.

34

D149451

BALL JOINT

1шт.

35

D146073

STOP

1шт.

36

139100A1

PIN,25.38mm OD x 164mm L

2шт.

37

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

38

892-11010

LOCK WASHER,M10

2шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

40

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

42

130127A1

BLOCK

2шт.

43

130207A1

SHIM

Two Per Side

4шт.

47

434142A1

WEAR PLATE

Replaces Ref D149504

2шт.

44

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

45

892-11012

LOCK WASHER,M12

4шт.

46

829-1412

NUT,M12, Cl 10.9

4шт.

48

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

49

892-11010

LOCK WASHER,M10

4шт.

50

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

87537539

REPAIR KIT

Three Point Hitch Rockshaft; Strengthens Shaft Pivot Area; Incl. Ref 51 - 53, Plus Instructions

1шт.

51

87518226

PIN

Rockshaft; 1.75 (1-3/4) dia x 797 mm (31-3/8 in) lg

1шт.

52

87519774

BOSS

Welded to Chassis Frame; Incl. Ref 53

2шт.

53

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

1шт.
