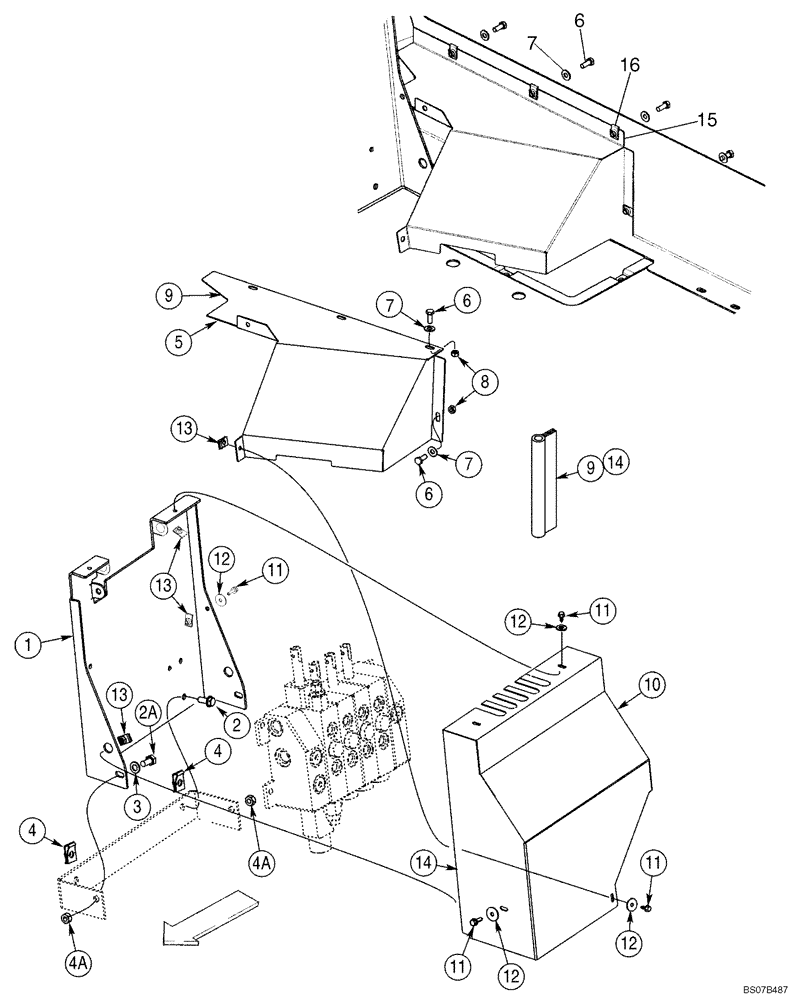

Запчасти Case 570MXT (09-12) - COVERS - HITCH CONTROL, THREE POINT (09) - CHASSIS/ATTACHMENTS

1

411159A1

PLATE ASSY.

Valve Mounting

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

2a

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

833-40310

NUT,M10, U

2шт.

4a

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

402455A1

COVER

Canopy Models

1шт.

6

514-644

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

86981722

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4-5шт.

8

829-1708

NUT,M8, Cl 10

4шт.

9

406167A1

SEAL

175 mm lg

1шт.

10

411161A1

COVER

1шт.

11

417310A1

BOLT,M6 x 25 Self Align W/Captured WSHR

M6 x 25

6шт.

12

86981721

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

6шт.

13

833-40406

NUT,M6, U

6шт.

14

406166A1

SEAL

1125 mm lg

1шт.

15

87583853

PROTECTIVE COVER

Cover, Cab Models

1шт.

16

833-40408

NUT,M8, U

4шт.
