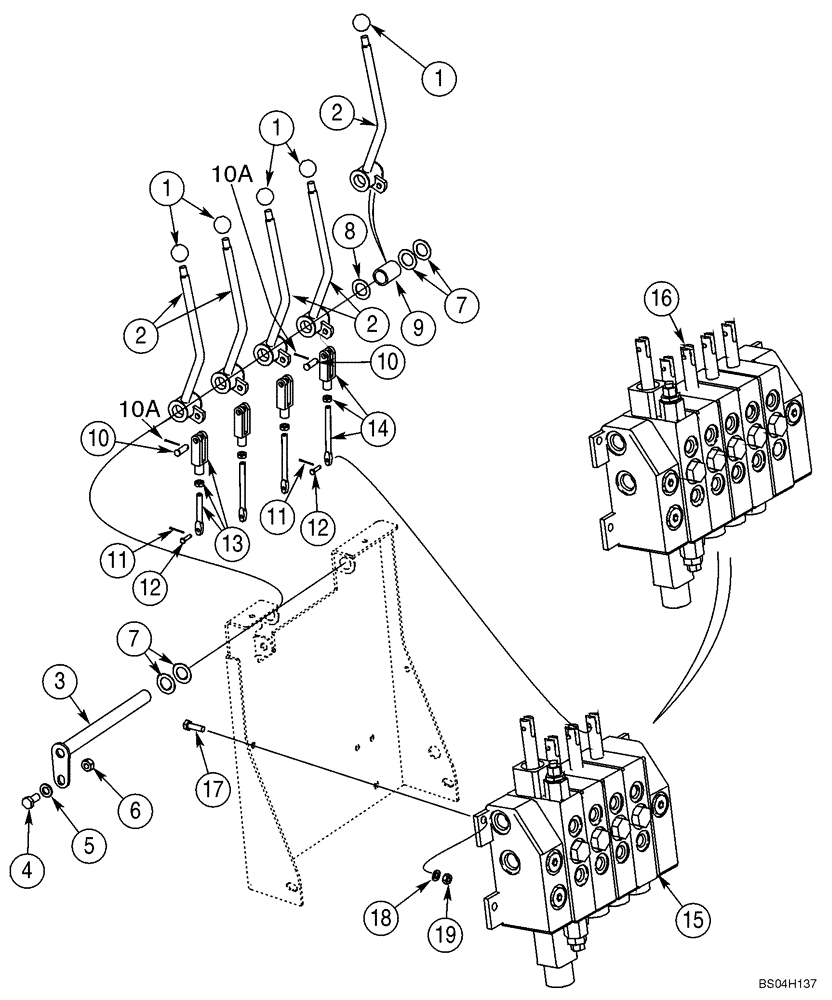

Запчасти Case 570MXT (09-11) - CONTROLS - HITCH, THREE POINT (09) - CHASSIS/ATTACHMENTS

1

404169A1

KNOB

4-5шт.

2

411048A1

HANDLE

Incl. D148992

4-5шт.

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

2шт.

3

87585830

SHAFT

Oval Headed Shaft; Replaces 403499A1 Tear Drop Headed Shaft

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

49/64 x 1-15/64 x 1/32

1шт.

8

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

9

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

Four Spool Valves Only

1шт.

10

D149287

PIN,7.9mm OD x 26.72mm L

4-5шт.

10a

432-612

COTTER PIN,3/32" x 3/4"

Upper

4-5шт.

11

432-412

COTTER PIN,1/16" x 3/4"

4-5шт.

12

405776A1

CLEVIS PIN,4.72mm OD x 22.28mm L

4-5шт.

13

411069A1

ROD ASSY.

Lift; Incl. 411204A1, 213-125, 425-155

1шт.

14

411070A1

ROD ASSY.

Incl. 411205A1, 213-125, 425-155

3-4шт.

15

392413A1

VALVE, CONTROL

Three Point Hitch; Four Spool; With Switch On Lift Spool For Lock Valve; See Figure 08-22

1шт.

15

86981899

CONTROL VALVE

Three Point Hitch; Four Spool; Without Switch On Lift Spool For Lock Valve; See Figure 08-22

1шт.

16

405818A1

VALVE, CONTROL

Three Point Hitch; Five Spool; See Figure 08-23

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.
