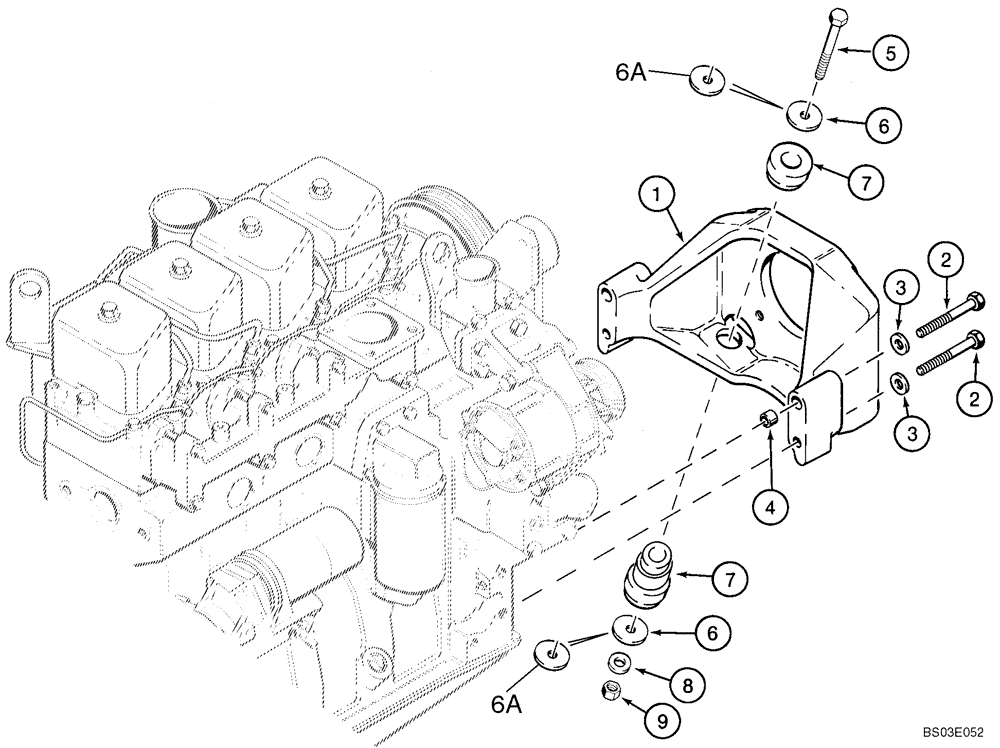

Запчасти Case 570MXT (02-10) - ENGINE - MOUNTING (02) - ENGINE

1

87702116

SUPPORT

See Figure 06-12 for rear engine/transmission mounts; Replaces 175637A1

1шт.

2

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

4шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

Used as a Spacer; Upper Bolt Holes

2шт.

5

86992193

BOLT

M12 x 90; With Blue 3M Scotch Strip; Replaces 814-12090 Without Blue 3M Scotch Strip Used On Some Models

2шт.

6

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8

2шт.

6a

195-81030

WASHER

17/32 x 1-1/2 x 3/16

2шт.

7

413153A1

RUBBER MOUNTING

Front; No Longer Used, Order 117844A1

2шт.

7

117844A1

MOUNTING PARTS

Front

2шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
