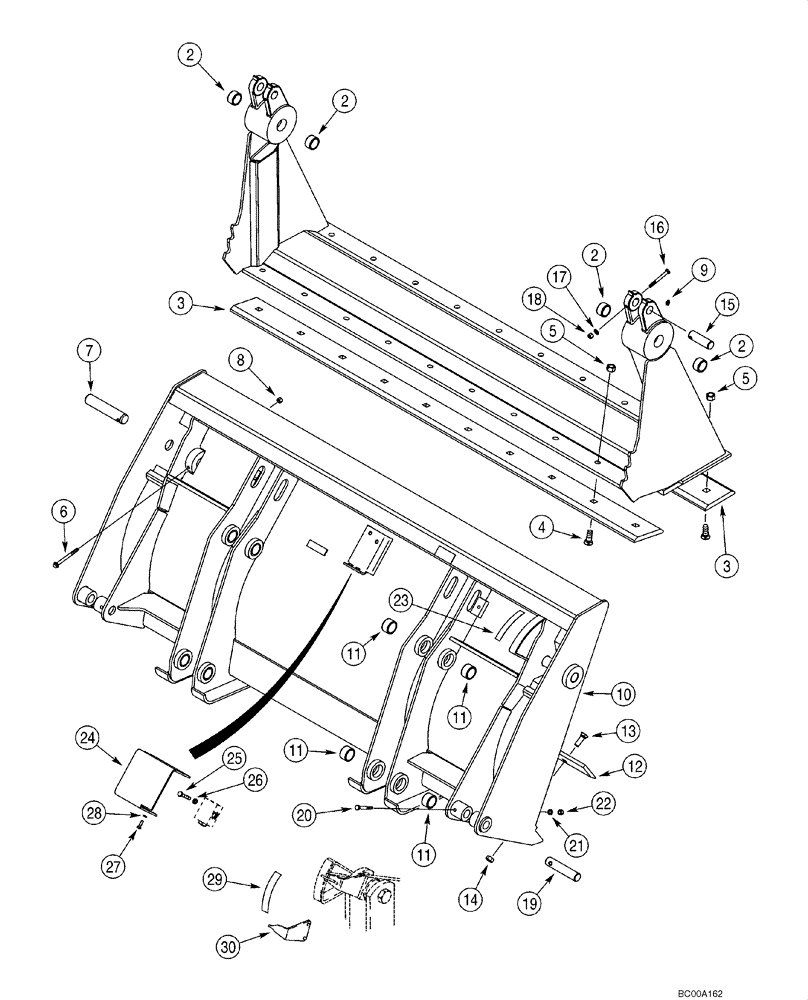

Запчасти Case 570MXT (09-08) - BUCKET, LOADER CLAM (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
.
87455509
BUCKET
2083 mm (82 in); Incl. 376288A2, 175156A1, 1 - 28; With Hydraulics; Also Incl. 08-06, REF 1 - 29, Order Through Parts Marketing; Replaces 376528A3 Bucket
1шт.
.
376288A2 BUCKET 2083 mm (82 in); Incl. 411668A1, 175156A1, (2) D51391, Ref 1 - 14; Without Hydraulics; Order Through Parts Marketing
1шт.
.
411668A1
BUCKET
BUCKET Incl. 175156A1, Ref 1 - 6, 8 - 14
1шт.
.
175156A1
CLAMSHELL BUCKET
Incl 1, 2
1шт.
1
NSS
NOT SOLD SEPARAT
Clam Assy
1шт.
2
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
4шт.
3
142300A1
CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2083mm L
2шт.
5
29-1012
NUT,3/4"-10, G8
20шт.
6
844-10110
BOLT,Hvy Hex, M10 x 110mm, Cl 8.8
2шт.
7
D51391
PIN,15mm OD x 74mm L
2шт.
8
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
9
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
376286A2
BUCKET
BLADE; Incl. 10, 11
1шт.
10
NSS
NOT SOLD SEPARAT
Blade Assy, Dozer
1шт.
11
D129264
BUSHING,40.3mm ID x 50mm OD x 28mm L
8шт.
12
121920A1
CUTTING EDGE,Bolt On, 10 Holes, 12.7mm W x 2080mm L
1шт.
13
20-21032
PLOW BOLT,#3, 5/8" - 11 x 2", Gr 8
10шт.
14
29-1010
NUT,5/8"-11, G8
10шт.
15
D51392
PIN,31.72mm OD x 101.6mm L
2шт.
16
814-10090
BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8
2шт.
17
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
18
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
19
D51393
PIN,31.72mm OD x 152.4mm L
2шт.
20
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
2шт.
21
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
22
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
23
321-1708
DECAL
1шт.
24
388848A1
GUARD
Pilot Operated Check Valve
1шт.
25
814-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
2шт.
26
892-11010
LOCK WASHER,M10
2шт.
27
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
28
892-11008
LOCK WASHER,8mm ID
2шт.
29
321-1707
DECAL
1шт.
30
250851A1
POINTER
1шт.
47837450
KIT
Repair Kit for 4-in-1 Loader Bucket, Gusset Plates (Qty.4)
1шт.
Выбрано товаров: 36
