Запчасти Case 570MXT (09-06) - BUCKETS, LOADER LONG LIP (82 IN) (09) - CHASSIS/ATTACHMENTS

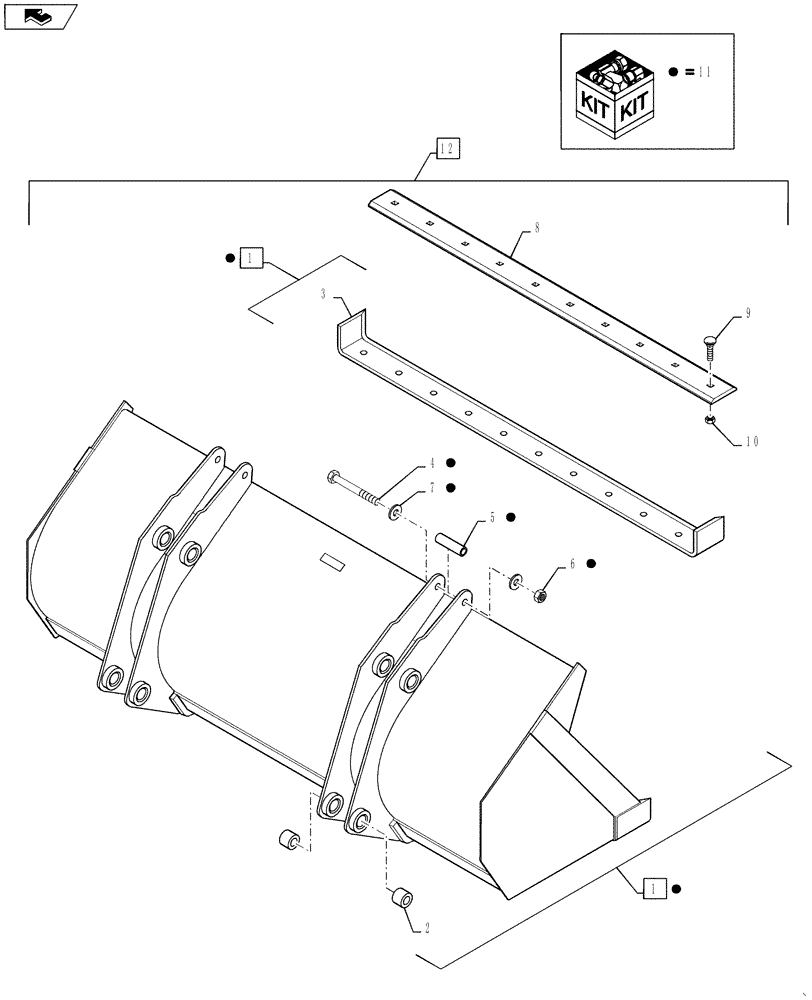

Схема запчастей Case 570MXT - (09-06) - BUCKETS, LOADER LONG LIP (82 IN) (09) - CHASSIS/ATTACHMENTS
12
11
11
2
11
home
1
4
5
3
8
1
10
11
9
6
11
11
7
11
11

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

87361166 Bucket; Incl. Ref 2, 3

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

3

132988A1

CUTTING EDGE

Welded-On

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

8

112946A1

EDGE, CUTTING

Bolt-On; Tan; Not Included In 385588A1or 87368702 Bucket Assembly, Purchase Separately

1шт.

411661A1

CUTTING EDGE,Bolt On, 10 Hole, 152mm W x 2113mm L

Bolt-On; Unpainted; For Painted Edge, Order 112946A1 Edge

1шт.

9

420-21232

CARRIAGE BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

10

429-1012

NUT,3/4"-10, G8

10шт.

11

386831A1

KIT

BUCKET ASSEMBLY, 2083 mm (82 in); Assembly Does Not Include Bolt-On Cutting Edge; Without Bucket Teeth; Incl. Ref 1 - 7; Order Through Wholegoods; Replaces 385588A1, 87368702, or 87368737 Bucket

1шт.

12

87577141

BUCKET

ASSEMBLY, 2083 mm (82 in); Painted Tan; Incl. Ref 1 - 10; Order Through Parts Marketing; Replaces 385920A1

1шт.

87365015

BUCKET,82 Inch LL

ASSEMBLY, 2083 mm (82 in); Primer Finish; Incl. Ref 1 - 10; Order Through Parts Marketing

1шт.

Выбрано товаров: 14
