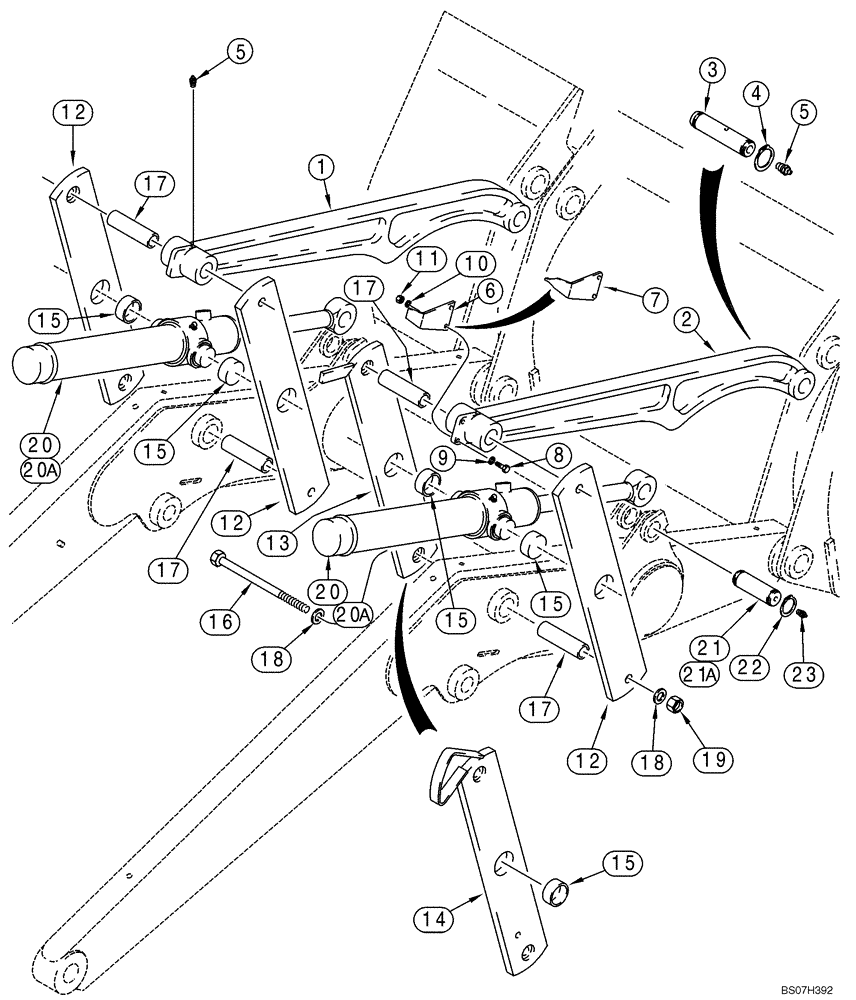

Запчасти Case 570MXT (09-05) - FRAME - LOADER LINKAGE (09) - CHASSIS/ATTACHMENTS

1

331621A1

PITMAN

Bucket; Left-Hand; Without Mounting Holes For Bucket Position Pointer; For Service, Order 331620A1

1шт.

2

331620A1

PITMAN

Bucket; Left-Hand or Right-Hand; With Mounting Holes For Bucket Position Pointer

1-2шт.

3

118901A1

PIN,40mm OD x 180mm L

2шт.

4

800-44040

SNAP RING,M40, Ext

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

6

D121194

POINTER

Models Without Clam Bucket

1шт.

7

250851A1

POINTER

Models With Clam Bucket

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

139180A1

LINK ASSY.

Bucket Cylinder; Outer Right-Hand; Inner and Outer Left-Hand; Incl.15

3шт.

13

139235A1

PITMAN

Bucket Cylinder; Inner Right-Hand; With Extra Hole For Antirollback Rod; Models Without Clam Bucket; Incl. 15

1шт.

14

139195A1

PITMAN

Bucket Cylinder; Inner Right-Hand; With Extra Hole For Antirollback Rod; Models With Clam Bucket; Incl. 15

1шт.

15

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

1шт.

16

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

17

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

4шт.

18

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

19

829-1420

NUT,M20, Cl 10

4шт.

20

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket; See Figure 08-33; Used With 87426379 Loader Arm, See Figure 09-04

2шт.

20

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

20

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

20a

87609669

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 ID x 522 mm strk; Loader Bucket; See Figure 08-33A; Used With 87566994 Loader Arm, See Figure 09-04A

2шт.

21

116339A1

PIN,40mm OD x 125mm L

Bucket Cylinder; Used with 87426379 Loader Arm, See Figure 09-04

2шт.

21a

87724438

GROOVED PIN,40mm OD x 138.3mm L

Bucket Cylinder; Used With 87566994 Loader Arm, See Figure 09-04A; Replaces 87608695 Used On Some Models

2шт.

22

800-44040

SNAP RING,M40, Ext

4шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
