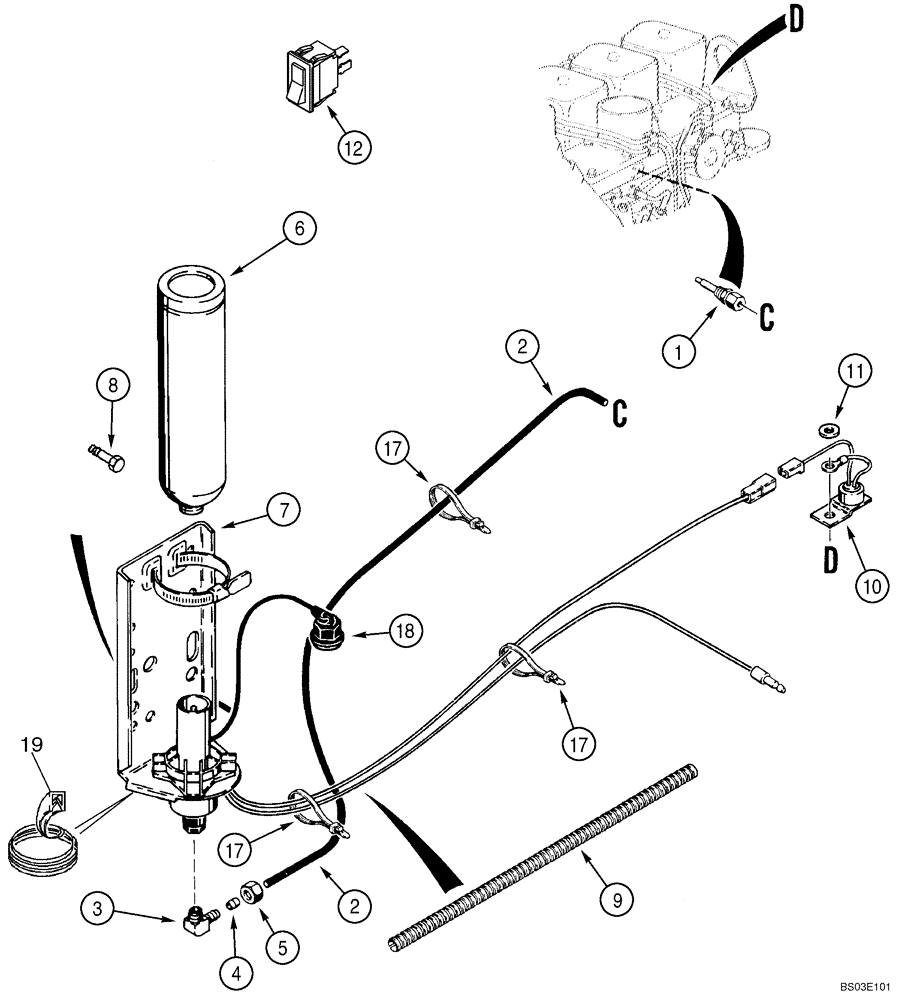

Запчасти Case 570MXT (02-09) - COLD START SYSTEM (02) - ENGINE

1

A189154

JET

.008 Inch Dual Orifice Nozzle; Component Parts Not Serviced Separately

1шт.

2

D145367

TUBE

762 mm (30 in); Cut From L60539X

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Body

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

6

A171940

CYLINDER

Ether

1шт.

7

A172116

VALVE

12V, 3 cc; Cold Start; Starting Fluid Injection; Component Parts Not Serviced Separately

1шт.

8

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

1шт.

9

D128402

PLASTIC-RUBBER TUBE

380 mm (15 in)

2шт.

10

A187923

SWITCH

SWITCH - Temperature; Uses Existing Hardware

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

12

386791A1

SWITCH

Cold Start

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

18

254729A1

SET OF PARTS

Cap and Cord; 1 Inch Threaded Cap

1шт.

19

399923A1

RUBBER STRIP

302 mm (7-13/16 in)

1шт.
