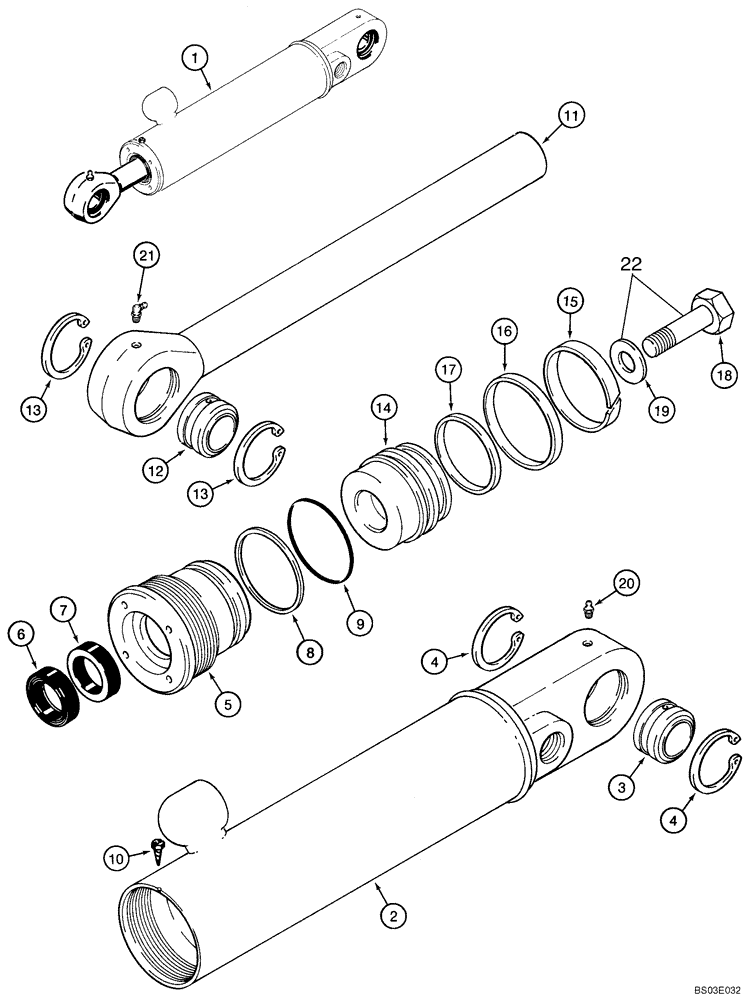

Запчасти Case 570MXT (08-37) - CYLINDER ASSY - HITCH PITCH, THREE POINT (TAN) (08) - HYDRAULICS

1

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

64 ID x 178 mm strk; Incl. 2- 21

1шт.

138235A1R

REMAN-HYD CYLINDER

570MXT

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

138236A1

TUBE,63.5mm Dia

Incl. 3, 4

1шт.

3

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

1шт.

4

100-21162

SNAP RING,1.625", Int, #162

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. 5 - 9

1шт.

5

118115A2

GLAND

1шт.

6

D95141

WIPER SEAL

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

1шт.

8

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

138847A1

PISTON ROD

32 mm (1-1/4 in) dia; Incl. 12, 13

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

1шт.

13

100-21162

SNAP RING,1.625", Int, #162

2шт.

14

137528A1

PISTON

1шт.

15

G100714

RING

1шт.

16

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

1шт.

17

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

18

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

If Used

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

If Used

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

86982434

SPECIAL BOLT,3/4" - 16 x 2"

3/4 x 2.0; Incl. Washer; If Used

1шт.

183286A1

SEAL KIT

Incl. 6- 9, 15 - 17

1шт.
