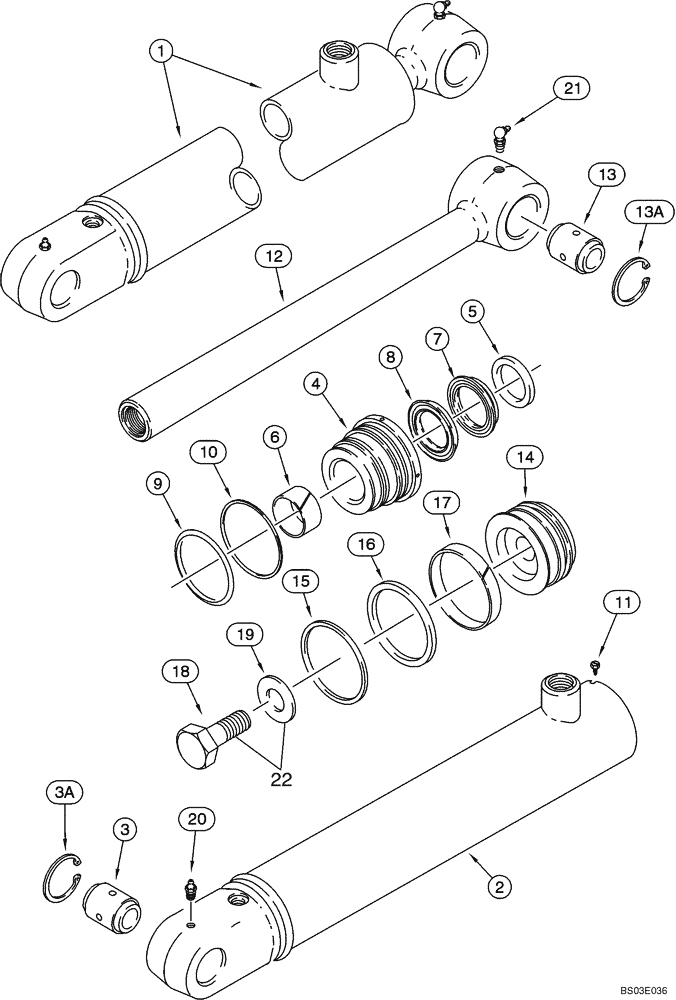

Запчасти Case 570MXT (08-35) - CYLINDER ASSY - HITCH LIFT, THREE POINT (TAN) (08) - HYDRAULICS

1

296715A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 207.2mm Stroke

76 ID x 207 mm strk; Incl. 2- 21

1шт.

2

296716A1

BARREL,426.7 mm Length

Incl. 3, 3A

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

3a

103-21200

SNAP RING,2", Int, #200

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. 4 - 10

1шт.

4

297280A1

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Incl 7, 8; Not Serviced Separately, Order 1543256C1 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543256C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543256C1 Seal Kit

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

296720A1

PISTON ROD

38 mm (1-1/2 in); Incl. 13, 13A

1шт.

13

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

13a

103-21200

SNAP RING,2", Int, #200

2шт.

14

296723A1

JACK PISTON

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

If Used

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

If Used

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

22

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1 x 2.5; Incl. Washer; If Used

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 5 - 10, 15 - 17

1шт.
