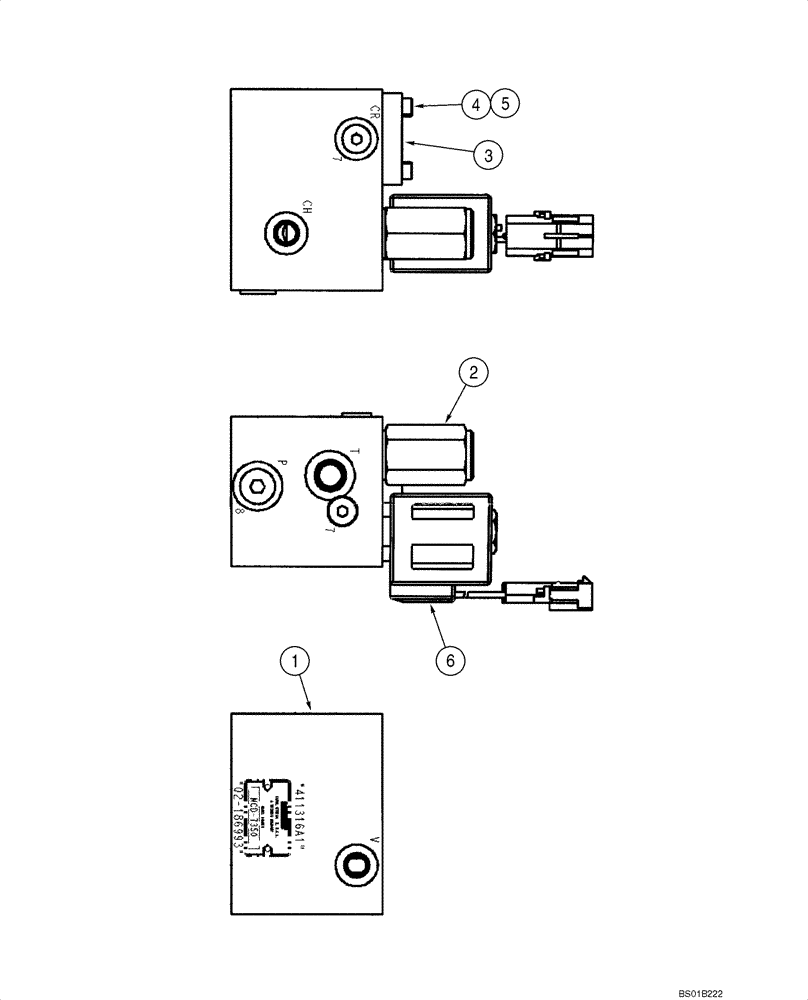

Запчасти Case 570MXT (08-29) - VALVE, LOCK - HITCH, THREE POINT (08) - HYDRAULICS

411316A1

VALVE, CONTROL

Lock, Incl. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

149939C2

VALVE

Incl. 149942C1; Component Parts Not Serviced Separately; For Service Of External Seals, Order 149942C1

1шт.

149942C1

SEAL KIT

Includes (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately

1шт.

86982039

KIT

Cover Plate; Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Cover Plate

1шт.

4

NSS

NOT SOLD SEPARAT

Screw

4шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

6

86982038

SOLENOID VALVE

Component Parts Not Serviced Separately; Incl. 86982037, 126054A1; Incl. Solenoid Valve, Cartridge, Coil and Coil Nut; For Service Of External Seals, Order 126054A1

1шт.

86982037

COIL

1шт.

126054A1

SEAL PACKAGE

Incl. (2) O-Rings and (2) Backup Ring; Component Parts Not Serviced Separately

1шт.
