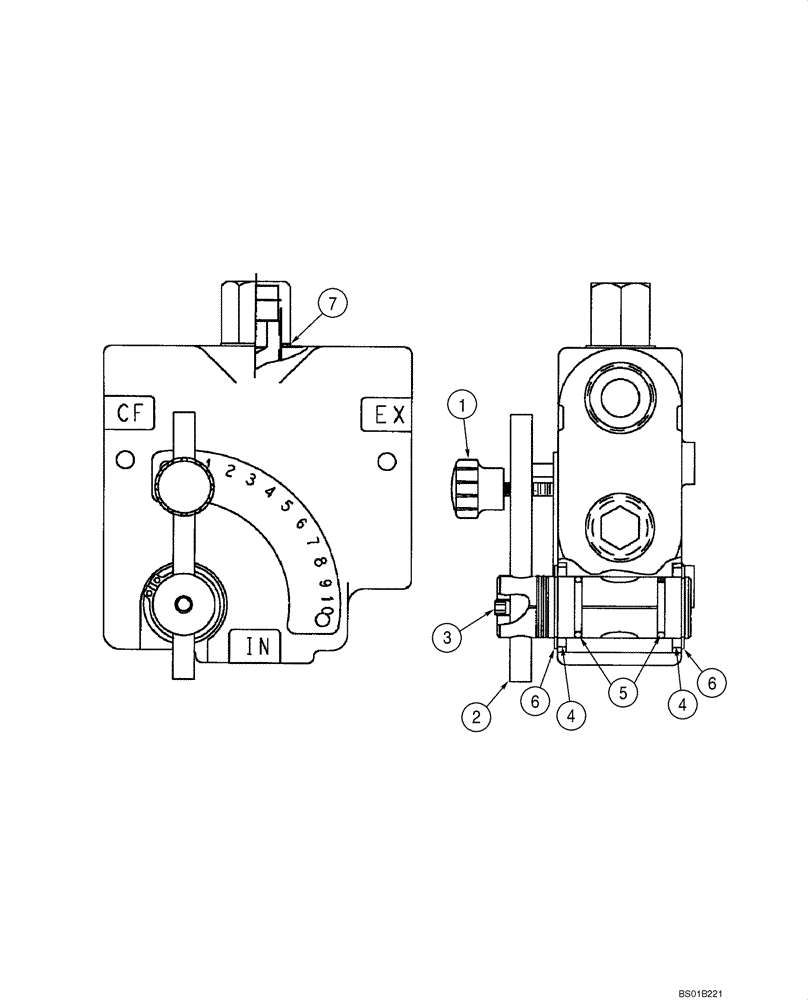

Запчасти Case 570MXT (08-28) - VALVE, FLOW CONTROL - HITCH, THREE POINT (08) - HYDRAULICS

399960A1

VALVE, CONTROL

Parker Hydraulics; Component Parts Not Serviced Separately; Incl. 419488A1, For Service Of External Seals, Order 419488A1; No Longer Available As An Assembly, For Service Order 87571180 Valve; See Figure 08-10, Ref 27A

1шт.

419488A1

KIT

Incl. 1 - 7; Component Parts Not Serviced Separately

1шт.

1

NSS

NOT SOLD SEPARAT

Knob

1шт.

2

NSS

NOT SOLD SEPARAT

Lever

1шт.

3

NSS

NOT SOLD SEPARAT

1/4, Setscrew

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

2шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

7

NSS

NOT SOLD SEPARAT

Washer, Not Used In This Application

1шт.
