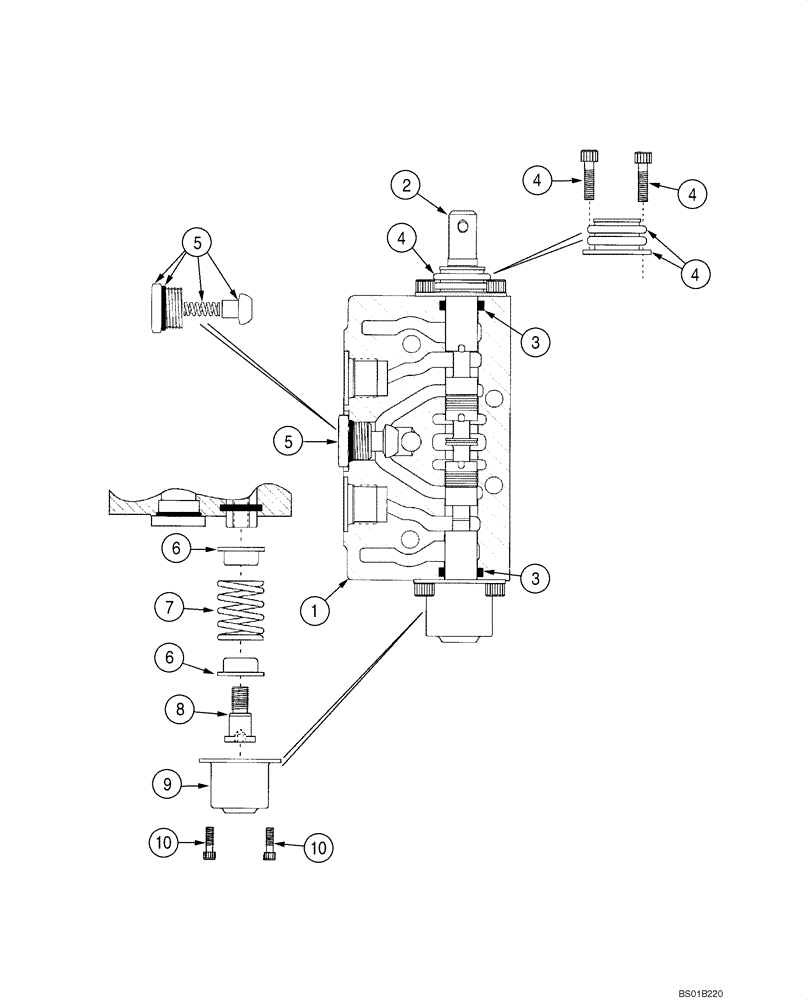

Запчасти Case 570MXT (08-27) - VALVE SECTION - HITCH PITCH, TILT AND IMPLEMENT (08) - HYDRAULICS

418956A1

HYD VALVE SECTION

Four Spool Control Valve; Pitch; Tilt and Implement; Five Spool Control Valve; Pitch, Tilt, Implement and Auxiliary; Incl. 1 - 10

3-4шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

419308A1

SEAL

Spool Lip Seal; Incl. (2) O-Rings; Component Parts Not Serviced Separately

1шт.

4

419311A1

BOOT

Incl. Boot, Retainer and (4) Screws; Component Parts Not Serviced Separately

1шт.

5

419306A1

KIT

Load Check; Incl. Plug, O-Ring, Spring and Poppet; Component Parts Not Serviced Separately

1шт.

419310A1

KIT

Incl. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Seat

2шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

1шт.

9

419341A1

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

4шт.
