(02-07) - MUFFLER - EXHAUST SYSTEM (MODELS WITH TURBOCHARGED ENGINE)

Запчасти Case 570MXT (02-07) - MUFFLER - EXHAUST SYSTEM (MODELS WITH TURBOCHARGED ENGINE) (02) - ENGINE

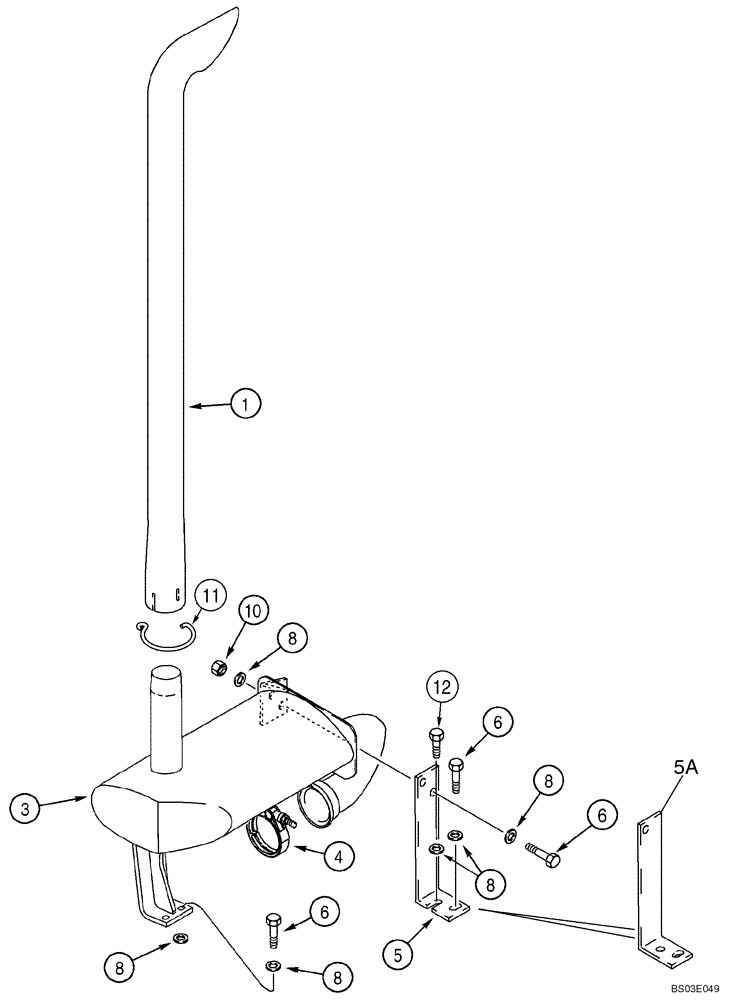

Схема запчастей Case 570MXT - (02-07) - MUFFLER - EXHAUST SYSTEM (MODELS WITH TURBOCHARGED ENGINE) (02) - ENGINE
3
6
4
6
5a
1
5
10
8
8
11
6
8
8
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

392301A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

3

392295A1

MUFFLER

1шт.

4

A170467

CLAMP,72mm ID

Incl. Hardware

1шт.

5

225033A1

SUPPORT

If Used

1шт.

5a

225033A2

BRACKET

If Used

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

401541A1

SPRING CLIP

1шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

432013A1

KIT

Service; Incl. 1, 3, 11

1шт.
