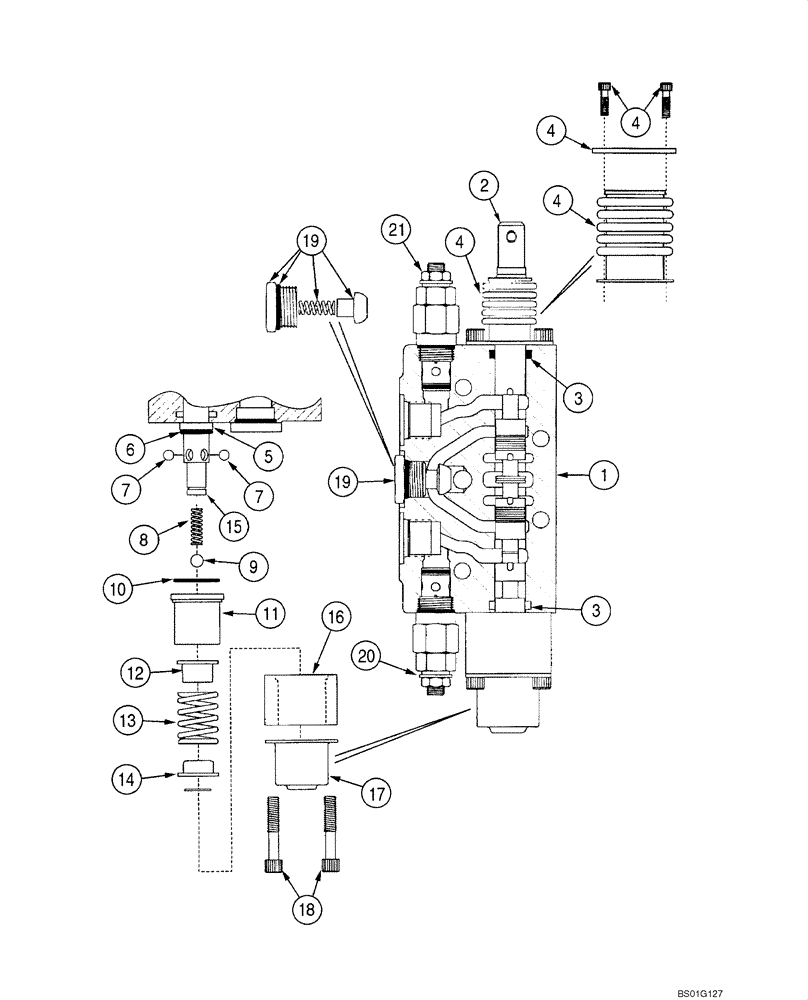

Запчасти Case 570MXT (08-26) - VALVE SECTION - HITCH LIFT (08) - HYDRAULICS

419776A1

HYD VALVE SECTION

Without Switch On Lift Spool For Lock Valve; Incl. 1 - 20; Used In Production; Not Available As An Assembly, For Service Order 418955A1; See Figure 08-25

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

419308A1

SEAL

Spool Lip Seal; Incl. (2) O-Rings; Component Parts Not Serviced Separately

1шт.

4

419309A1

BOOT

Incl. Boot, Retainer and (4) Screws; Component Parts Not Serviced Separately

1шт.

432850A1

KIT

Incl. 5 - 18; Replaces 419305A1

1шт.

5

419337A1

SLEEVE

1шт.

6

419338A1

SEAL

SEALRING

1шт.

7

211-1008

BALL,1/4" Dia

4шт.

8

419339A1

COIL SPRING

1шт.

9

211-1010

BALL,5/16" OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

12

NSS

NOT SOLD SEPARAT

Seat

1шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Seat

1шт.

15

432851A1

SPOOL

Replaces 419355A1

1шт.

16

NSS

NOT SOLD SEPARAT

Spacer

1шт.

17

419341A1

COVER

1шт.

18

NSS

NOT SOLD SEPARAT

Screw

4шт.

19

419306A1

KIT

Load Check; Incl. Plug, O-Ring, Spring and Poppet; Component Parts Not Serviced Separately

1шт.

20

433552A1

VALVE, PRESSURE RELI

EF Incl. 419313A1; Component Parts Not Serviced Separately; For Service Of External Seals, Order 419313A1; Replaces 419307A1

2шт.

21

433553A1

VALVE, PRESSURE RELI

EF Incl. 419313A1; Component Parts Not Serviced Separately; For Service Of External Seals, Order 419313A1

1шт.

419313A1

KIT

Incl. (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately

1шт.
