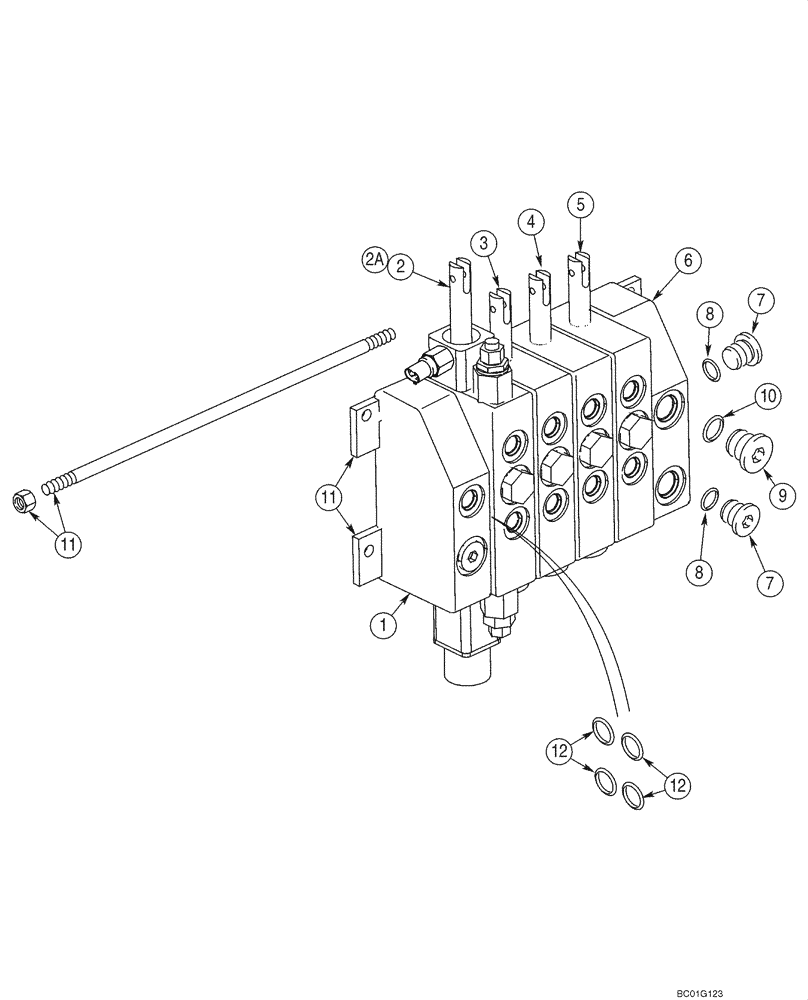

Запчасти Case 570MXT (08-22) - VALVE ASSY - HITCH, THREE POINT (FOUR SPOOL CONTROL VALVE) (08) - HYDRAULICS

FOUR SPOOL CONTROL VALVE

1шт.

392413A1

VALVE, CONTROL

With Switch On Lift Spool For Lock Valve; Incl. 1, 2, 3 - 12; If Used

1шт.

86981899

CONTROL VALVE

Without Switch On Lift Spool For Lock Valve; Incl. 1, 2 - 12; If Used

1шт.

1

432849A1

COVER ASSY

Inlet; See Figure 08-24; Replaces 418950A1

1шт.

2

418955A1

HYD VALVE SECTION

Lift; With Switch On Lift Spool For Lock Valve; 392413A1 Valve; See Figure 08-25

1шт.

2a

419776A1

HYD VALVE SECTION

Section Assy; Lift; Without Switch On Lift Spool For Lock Valve; 86971899 Valve; Used In Production, For Service Order 418955A1, REF 2; See Figure 08-26

1шт.

3

418956A1

HYD VALVE SECTION

Pitch; See Figure 08-27

1шт.

4

418956A1

HYD VALVE SECTION

Tilt; See Figure 08-27

1шт.

5

418956A1

HYD VALVE SECTION

Implement; See Figure 08-27

1шт.

418957A1

COVER ASSY

Outlet; Incl. 6 - 10

1шт.

6

419343A1

HOUSING

1шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

86625138

PLUG,7/18" - 14

Includes Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

432852A1

KIT

Stud

1шт.

11

432848A1

KIT

Component Parts Not Serviced Separately; Incl. (4) Tie Bolts, (8) Nuts, (2) Brackets and (6) Seals

1шт.

12

418958A1

KIT

Section Seals; Component Parts Not Serviced Separately; Incl. (4) O-Rings

5шт.

REF

INSTRUCTION

To Convert Four Spool Valve to Five Spool Valve, Order 430409A1 Valve Section Kit

1шт.

430409A1

HYDRAULIC VALVE

Includes 418956A1 5th Work Section, (4) Tie Rods for Five Spool, (4) O-Rings

1шт.
