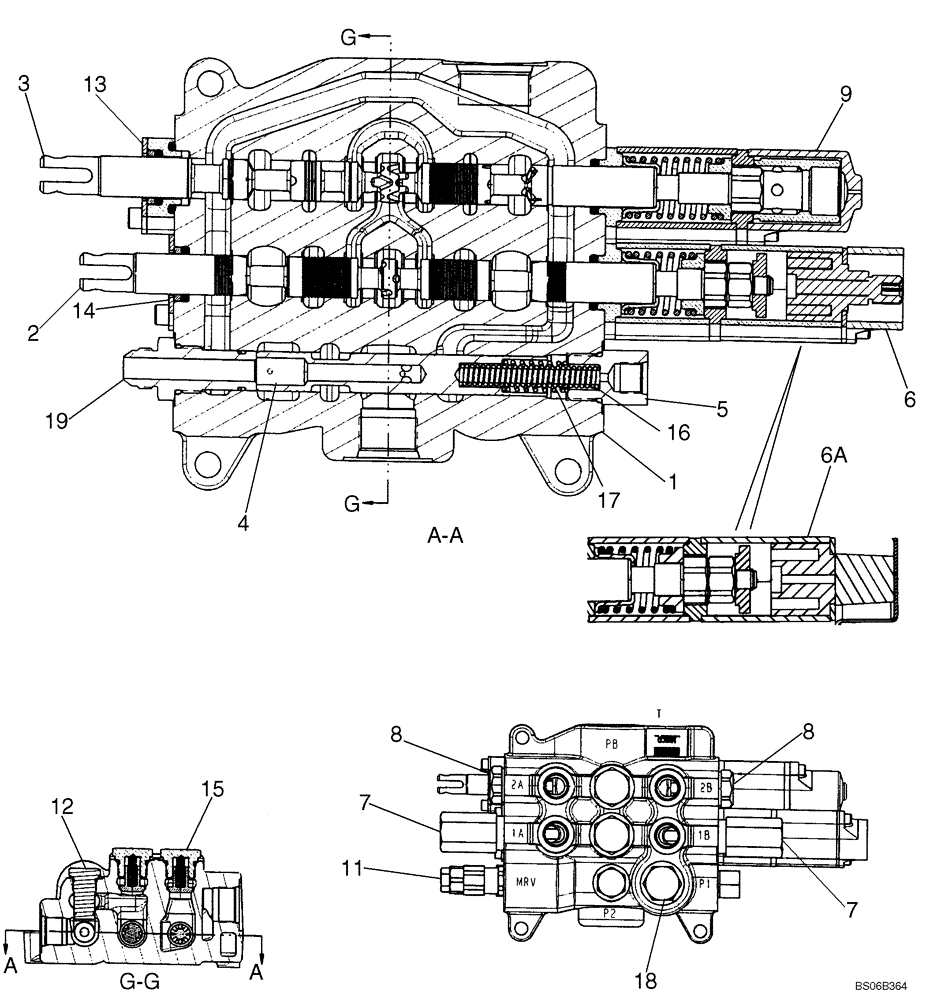

Запчасти Case 570MXT (08-21C) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (HUSCO - WITH BUILT-IN PRIORITY VALVE) (08) - HYDRAULICS

87311340

HYDRAULIC VALVE

Two Spool Loader Valve, With Built-In Priority/Flow Control; Incl. Ref 1 - 6, 7 - 19; No Longer Used, Order 87351505 Valve

1шт.

87351505

HYDRAULIC VALVE

Two Spool Loader Valve, With Built-In Priority/Flow Control; Incl. Ref 1 - 5, 6A - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Bucket

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, Lift

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

5

87327832

PLUG

Adapter Plug, Includes Serviceable (1) 87455974 O-Ring

1шт.

6

87426221

DETENT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87311340 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87310277 Magnet, (2) 87310278 Screw

1шт.

6a

84124604

KIT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87351505 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

7

87450978

VALVE PRESSURE RELIE

Assembly; Replaces 87426232; Component Parts Not Serviced Separately; Serviceable Includes 87455549 Seal Kit

2шт.

8

81868381

CHECK VALVE,1-1/16" - 12

Load Check Valve, Anti-Void; Component Parts Not Serviced Separately; Serviceable Includes 87455580 Seal Kit

2шт.

9

87426227

DETENT

Manual Detent Assembly, Lift; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

1шт.

11

87426717

VALVE PRESSURE RELIE

Main Relief Valve Assembly, Single Stage; Component Parts Not Serviced Separately; Serviceable Includes 87455551 Seal Kit

1шт.

12

87327834

PLUG

Shut-Off Plug; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87455974 O-Ring, (1) 87350917 O-Ring

1шт.

13

87440815

PLATE

Lift Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

14

87440814

KIT

Bucket Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

1шт.

15

87426238

VALVE, CHECK

Includes Serviceable 87455975 O-Ring

2шт.

16

87350895

VALVE SPRING

1шт.

17

87350896

VALVE SPRING

1шт.

18

87350894

PLUG

Component Parts Not Serviced Separately

1шт.

19

87327833

FITTING

Special; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87350920 O-Ring Large, (1) 87350919 Backup Ring, (1) 87350917 O-Ring Small

1шт.
