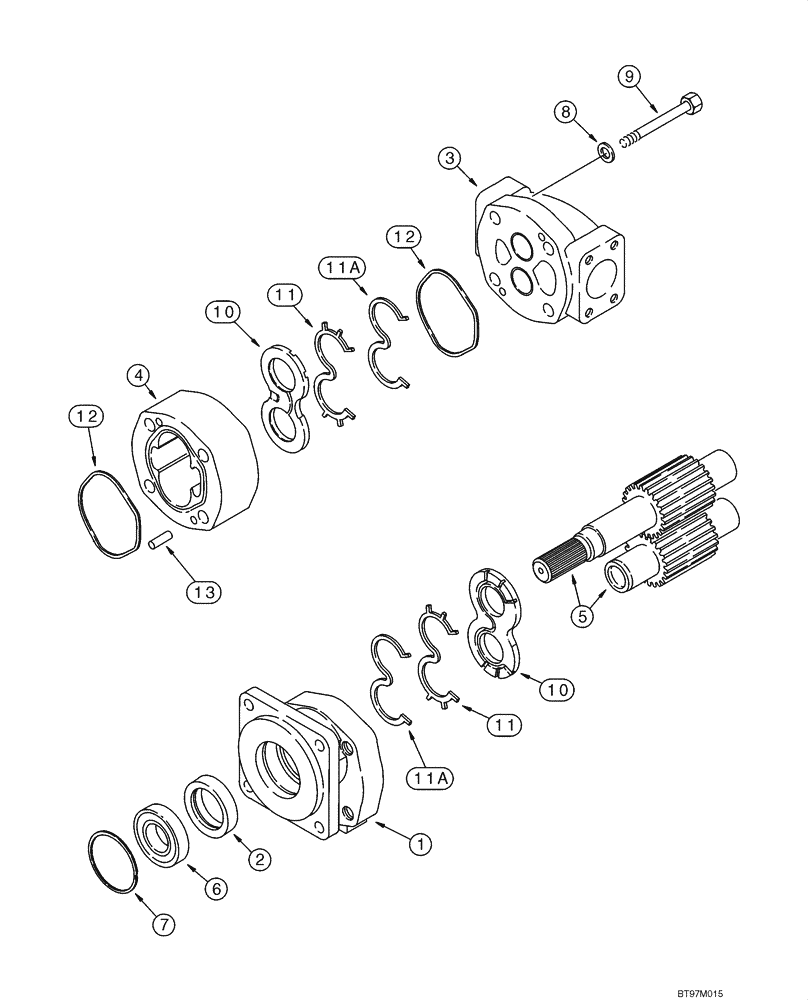

Запчасти Case 570MXT (08-13) - PUMP, EQUIPMENT HYDRAULIC (08) - HYDRAULICS

257953A1

PUMP, HYDRAULIC

Incl. 1 - 13

1шт.

257953A1R

REMAN-HYD PUMP

1шт.

257953A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Cover, Shaft End

1шт.

2

L32318

SEAL

1шт.

3

NSS

NOT SOLD SEPARAT

Cover, Closed End

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

NSS

NOT SOLD SEPARAT

17 T; Gear, Set

1шт.

6

S88754

BALL BEARING

1шт.

7

102-23283

SNAP RING,#283, 3.009", Int, Spiral

1шт.

8

19-488

WASHER

4шт.

9

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

4шт.

10

111589A1

LARGE PLATE

PLATE, LARGE

2шт.

11

293926A1

SEAL

2шт.

11a

293925A1

SEAL

2шт.

12

111592A1

SEAL,Square, 3.4mm Thk x 113.9mm ID

2шт.

13

W16323

DOWEL

4шт.

293923A1

SEAL KIT

Seal; Incl. 2, 10 - 12

1шт.
