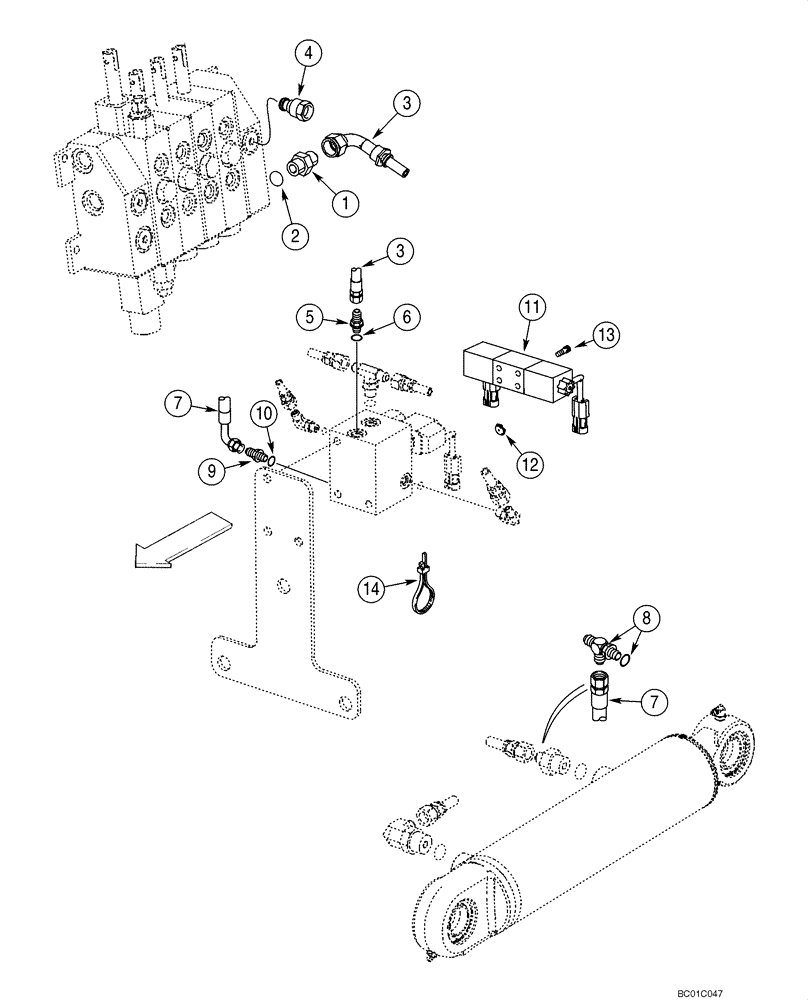

Запчасти Case 570MXT (08-12) - HYDRAULICS - VALVE, LASER CONTROL (MODELS WITH THREE POINT HITCH LOCK VALVE) (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

86982086

HOSE ASSY.

675 mm; Hitch Valve Outlet

1шт.

4

86981936

PLUG

Power Beyond; Incl. (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

86981937

HOSE ASSY.

450 mm; Lock Valve To Lift Cylinder Rod End

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

411931A1

SOLENOID VALVE

Laser Control Valve; Incl. 429979A1, 429980A1

1шт.

429979A1

COIL

Solenoid

1шт.

429980A1

SEAL KIT

Seal

1шт.

12

86982087

PLUG

1шт.

13

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.
