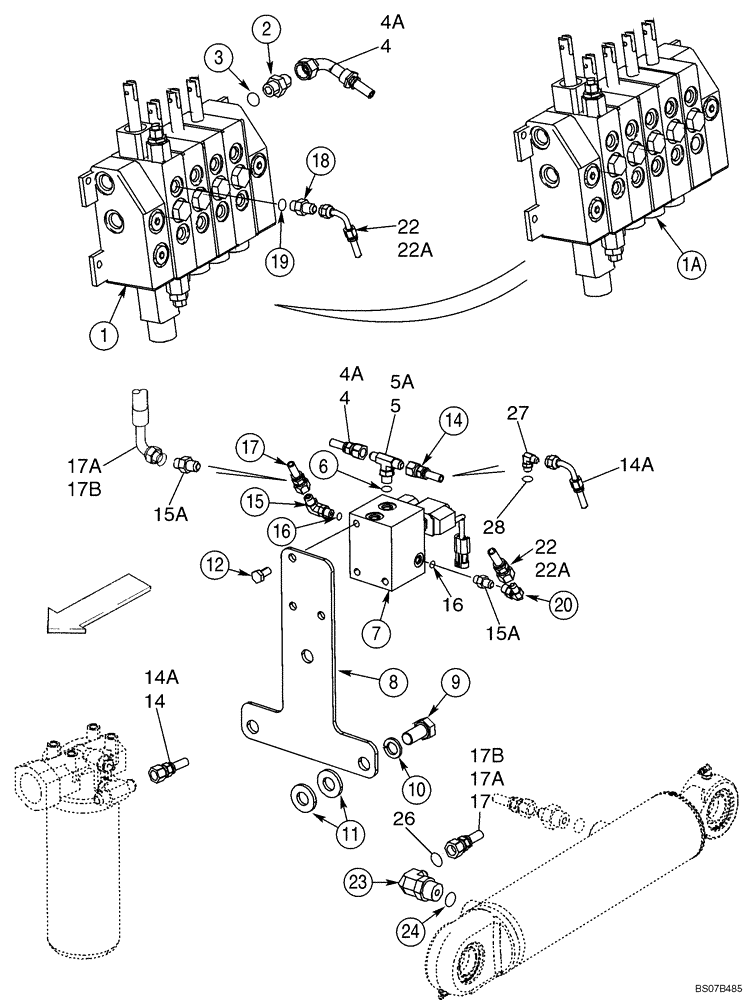

Запчасти Case 570MXT (08-11) - HYDRAULICS - HITCH LOCK VALVE, THREE POINT (FOUR OR FIVE SPOOL VALVE) (08) - HYDRAULICS

1

392413A1

VALVE, CONTROL

Three Point Hitch; Four Spool; Models With Switch On Lift Spool; For Lock Valve, See Figure 08-22

1шт.

1a

405818A1

VALVE, CONTROL

Three Point Hitch; Five Spool; See Figure 08-23

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

447179A1

HOSE ASSY.

675 mm; Return; Hitch Valve To Lock Valve

1шт.

4a

86982169

HOSE ASSY.

Return; Control Valve To Holding Valve

1шт.

5

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 6; If Used

1шт.

5a

218-5511

TEE,37 Degree, 3/4"-16 x 9/16"-18, O-Ring Br

Used With 4A, 14A; Incl. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

411316A1

VALVE, CONTROL

Lock Valve; See Figure 08-29

1шт.

8

86981889

PLATE

1шт.

9

614-18035

BOLT,Hex, M18 x 2.5 x 35mm, Cl 8.8, Full Thd

3шт.

10

892-11018

LOCK WASHER,M18

If Used

3шт.

10

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

If Used

3шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

14

86982084

HOSE ASSY.

850 mm; Return To Filter; No Longer Used, Order 14A

1шт.

14a

86982168

HOSE ASSY.

850 mm; Return; Holding Valve To Filter; Replaces 14

1шт.

15

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 16; If Used

1шт.

15a

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 16; Used with 17A

2шт.

16

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

405842A1

HOSE ASSY.,9.53mm ID x 950mm L

950 mm (37-7/16 in); Upper Lift Port; Hitch Valve To Lock Valve; No Longer Available, Order 17A

1шт.

17a

430947A1

HOSE ASSY.

475 mm (18-11/16 in); Lift Cylinder Closed End; Used With 15A; Used With Tan Cylinder / 3 Pt Hitch Frame on Figure 09-13, 09-13A

1шт.

17b

87561386

HOSE ASSY.,10mm ID x 855mm L, SAE 100R17

855 mm (33-11/16 in); Lift Cylinder Closed End; Used With Gray Cylinder / 3 Pt Hitch Frame on Figure 09-13B

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

22

405842A2

HOSE ASSY.,9.53mm ID x 950mm L

950 mm (37-7/16 in); Hitch Valve to Lock Valve; Used With Tan Cylinder / 3 Pt Hitch Frame on Figure 09-13, 09-13A

1шт.

22a

87573253

HOSE ASSY.,10mm ID x 1306mm L, SAE 100R17

1306 mm (51-7/16 in); Hitch Valve to Lock Valve; Used With Gray Cylinder / 3 Pt Hitch Frame on Figure 09-13B

1шт.

23

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

405512A1

ROCKER SWITCH

Three Point Hitch, Side Console

1шт.

26

86981925

RESTRICTOR

1шт.

27

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 28; If Used

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
