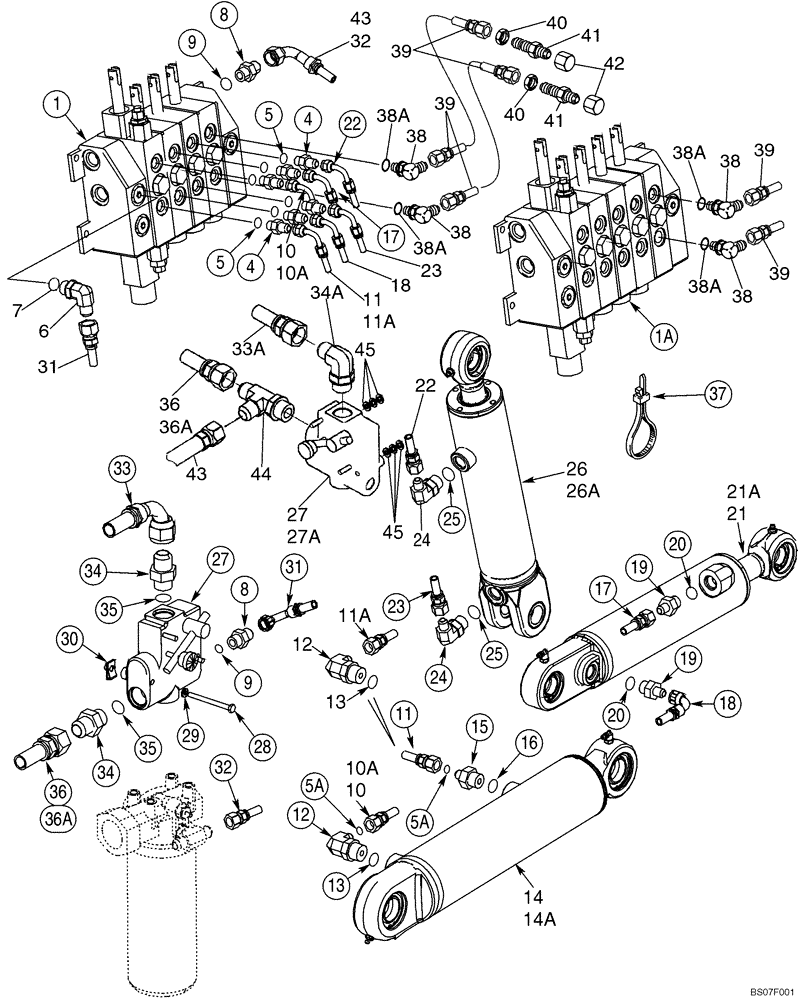

Запчасти Case 570MXT (08-10) - HYDRAULICS - HITCH, THREE POINT (FOUR OR FIVE SPOOL VALVE) (08) - HYDRAULICS

1

392413A1

VALVE, CONTROL

Three Point Hitch; Four Spool; Models With Switch On Lift Spool For Lock Valve; See Figure 08-22

1шт.

1

86981899

CONTROL VALVE

Three Point Hitch; Four Spool, Models Without Switch On Lift Spool For Lock Valve; Not Illustrated; See Figure 08-22

1шт.

1a

405818A1

VALVE, CONTROL

Three Point Hitch; Five Spool; See Figure 08-23

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. 3; No Longer Used; Not Illustrated; Replaced by Ref 38 - 42

2-4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

6-8шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5a

86981925

RESTRICTOR

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

405842A2

HOSE ASSY.,9.53mm ID x 950mm L

950 mm (37-7/16 in); Upper Lift Port; To Cylinder Closed End; Models Without Lock Valve; Replaces 405842A1; Used With Ref 14 Tan Cylinder / 3 Pt. Hitch Frame on Figure 09-13, 09-13A

1шт.

10

430947A1

HOSE ASSY.

475 mm (18-3/4 in); Models With Lock Valve; See Figure 08-11; Used With Ref 14 Tan Cylinder / 3 Pt Hitch Frame on Figure 09-13, 09-13A

1шт.

10a

87573253

HOSE ASSY.,10mm ID x 1306mm L, SAE 100R17

1306 mm (51-7/16 in); Upper Lift Port; To Cylinder Closed End; Models Without Lock Valve; Used With Ref 14A Gray Cylinder / 3 Pt Hitch Frame on Figure 09-13B

1шт.

10a

87561386

HOSE ASSY.,10mm ID x 855mm L, SAE 100R17

855 mm (33-11/16 in); Models With Lock Valve; See Figure 08-11; Used With Ref 14A Gray Cylinder / 3 Pt Hitch Frame on Figure 09-13B

1шт.

11

405841A1

HOSE ASSY.

800 mm (31-1/2 in); Lower Lift Port; To Cylinder Rod End; Used With Ref 14 Tan Cylinder / 3 Pt Hitch Frame on Figure 09-13, 09-13A

1шт.

11a

87561383

HOSE ASSY.,6.3mm ID x 1130mm L, SAE 100R17

1130 mm (44-1/2 in); Lower Lift Port; To Cylinder Rod End; Used With Ref 14A Gray Cylinder / 3 Pt Hitch Frame on Figure 09-13B

1шт.

12

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl. 13; Two Used With Gray Cylinders

1-2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

296715A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 207.2mm Stroke

76 ID x 207 mm strk; Lift; Tan; See Figure 08-35; Used On Models With Offset 3 Pt Hitch Frame Draft Arms on Figure 09-13, 09-13A

1шт.

14a

86982542

LIFT CYLINDER,Double Acting, 38.1mm Rod, 207.2mm Stroke

76 ID x 207 mm strk; Lift; Gray; See Figure 08-35A; Used On Models With Straight 3 Pt Hitch Frame Draft Arms on Figure 09-13B

1шт.

15

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

Includes 16; Used with Ref. 11 hose

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

405839A2

HOSE ASSY.,6.35mm ID x 1225mm L

1225 mm (487/32 in); Upper Pitch Port; To Cylinder Rod End; Incl. Clamp And Sleeve; Replaces 405839A1

1шт.

18

410702A1

HOSE ASSY.,6.35mm ID x 975mm L

975 mm; Lower Pitch Port; To Cylinder Closed End

1шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Incl. 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

138235A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 178mm Stroke

64 ID x 178 mm strk; Pitch; Tan; See Figure 08-37; Used on Models With Offset 3 Pt Hitch Frame Draft Arms on Figure 09-13, 09-13A

1шт.

138235A1R

REMAN-HYD CYLINDER

570MXT

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

21a

REF

INSTRUCTION

64 ID x 178 mm strk; Pitch; Gray; See Figure 08-37A Or 08-37B; Used on Models With Straight 3 Pt Hitch Frame Draft Arms on Figure 09-13B

1шт.

22

405837A3

HOSE ASSY.,6.35mm ID x 1450mm L

1380 mm (57-3/32 in); Upper Tilt Port; To Cylinder Rod End; Incl. Banded Clamp And Sleeve; Replaces 405837A1, 405837A2

1-2шт.

23

405838A3

HOSE ASSY.,6.35mm ID x 1630mm L

1630 mm (64-3/16 in); Lower Tilt Port; To Cylinder Closed End; Incl. Banded Clamp And Sleeve; Replaces 405838A1, 405838A2

1-2шт.

24

442858A1

ELBOW

3/8 Tube 1/2 in Adapter; Incl. 25; Replaces 218-5128

2-4шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

137912A1

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

64 ID x 160 mm strk; Tilt; Tan; See Figure 08-36; Used on Models With Offset 3 Pt Hitch Frame Draft Arms on Figure 09-13, 09-13A

1-2шт.

26a

86982482

CYLINDER ASSY.,Double Acting, 31.8mm Rod, 160mm Stroke

64 ID x 160 mm strk; Tilt; Gray; See Figure 08-36A; Used on Models With Straight 3 Pt Hitch Frame Draft Arms on Figure 09-13B

1-2шт.

27

399960A1

VALVE, CONTROL

Flow Control Valve; Parker Hydraulics, See Figure 08-28; No Longer Available, For Service Order 87571180 Valve, Ref 27A

1шт.

27a

87571180

CONTROL VALVE

Flow Control Valve; Brand Hydraulics; No Component Parts Available At Time Of Printing

1шт.

28

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

29

892-11006

LOCK WASHER,M6

If Used

2шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

2шт.

30

833-40406

NUT,M6, U

2шт.

31

86982083

HOSE ASSY.,12.5mm ID x 1100mm L

1100 mm; Flow Control Valve To Hitch Valve Inlet

1шт.

32

86982085

HOSE ASSY.

1575 mm; Return To Filter; Models Without Lock Valve

1шт.

32

86982168

HOSE ASSY.

Return Holding Valve To Tank

1шт.

33

405832A1

HOSE ASSY.

750 mm (29-17/32 in); Loader Valve To Flow Control Valve; No Longer Used; Used With REF 34

1шт.

33a

429149A1

HOSE ASSY.

725 mm (28-9/16 in); Loader Valve To Flow Control Valve; Used With REF 34A; If Used

1шт.

33a

87310473

HOSE ASSY.,19.05mm ID x 740mm L

740 mm (29-3/16 in); Loader Valve to Flow Control Valve; Used With Ref 34A; If Used

1шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 35

1-2шт.

34a

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 35; Used with 33A

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

413048A1

HOSE ASSY.

670 mm (26-3/8 in); Return To Tee At Loader Valve Inlet; Two Spool Loader Valve; Models Without Husco Loader Valve

1шт.

36

87448136

HOSE ASSY.

585 mm (23-1/32 in); Two Spool Loader Valve; Models With Husco Loader Valve

1шт.

36a

413436A1

HOSE ASSY.

625 mm (24-5/8 in); Return To Tee At Loader Valve Inlet; Three Spool Loader Valve; Models Without Husco Loader Valve

1шт.

36a

87448137

HOSE ASSY.

540 mm (21-5/16 in); Three Spool Loader Valve; Models With Husco Loader Valve

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

38

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 38A

2-4шт.

38a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

39

430561A1

HOSE ASSY.,6.35mm ID x 450mm L

450 mm; Fourth And Fifth Spool To Bulkheads

2-4шт.

40

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

41

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

42

218-754

CAP,37 Degree, 9/16"-18

2шт.

43

447179A1

HOSE ASSY.

675 mm (26-5/8 in); Return Control Valve To Flow Control

1шт.

44

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes 237-6012 O-Ring

1шт.

45

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Used With 87571180 Brand Hydraulics Valve, Ref 27A

6шт.
